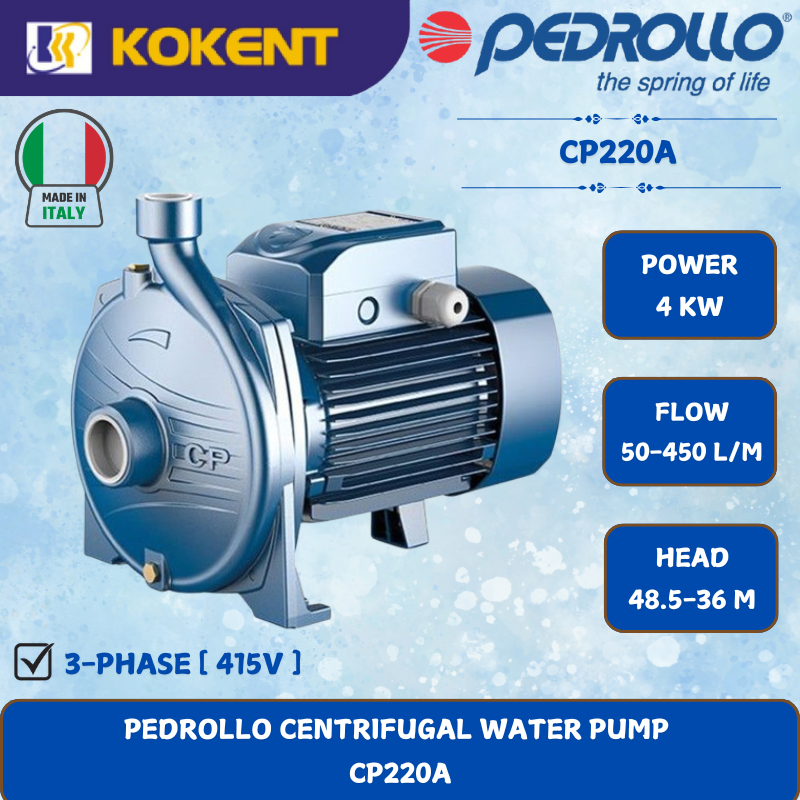

PEDROLLO CENTRIFUGAL WATER PUMP [4KW.50-450L/MIN.48.5-36M/HEAD] CP220A

Description

Model: CP220A (Made in Italy)

Pedrollo centrifugal pump with low/medium flow rate but high head.

Three Phase, 415V

Descriptions

• Suitable for use with clean water and with liquids that are not chemically aggressive towards the materials from which the pump is made.
• These pumps are widely used in civil, agricultural and industrial applications such as for supplying water, in air conditioning and cooling systems, for irrigation, etc.
• The pump should be installed in an enclosed environment or sheltered from inclement weather.

Performance Range

• Flow rate up to 900 l/min (54 m³/h)
• Head up to 76 m

Applications Limits

• • Manometric suction lift up to 7 m
• Liquid temperature between -10 °C and +90 °C
• Ambient temperature between -10 °C and +40 °C
• Max. working pressure 10 bar
• Continuous service S1

Specifications

Accessories Included

• Without cable
• Carton box
