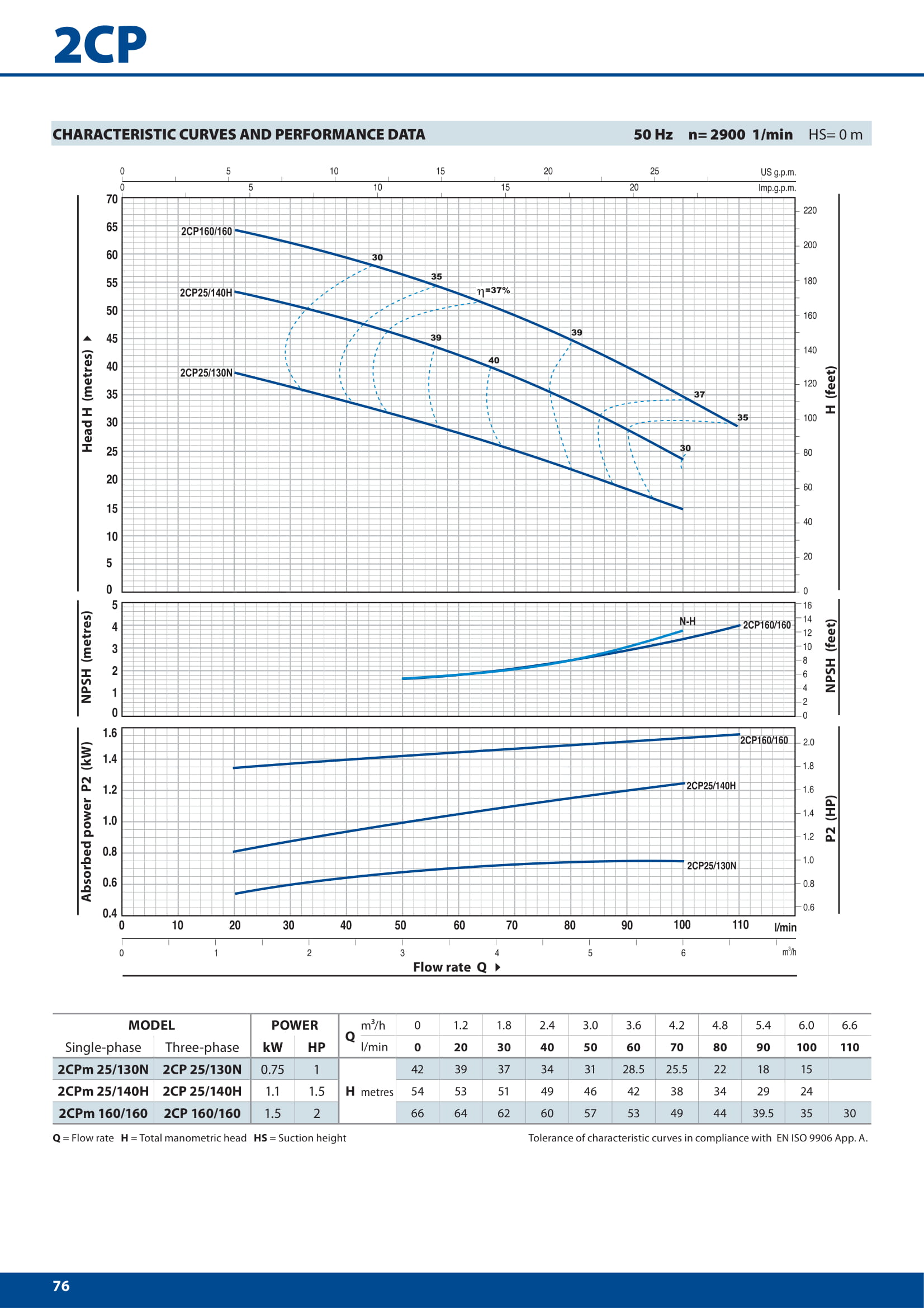

PERFORMANCE RANGE
- Flow rate up to 450 l/min (27 m³/h)
- Head up to 112 m
INSTALLATION AND USE
- Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made. The high effi ciency and adaptability of these pumps to even the most unusual of applications, makes them ideal for use in the domestic, civil and industrial sectors; in particular for the distribution of water in combination with pressure sets, for pressure boosting and in fi re-fi ghting sets. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.
APPLICATION LIMITS
- Manometric suction lift up to 7 m
- Liquid temperature between -10 °C and +90 °C (up to +40 for the version with the technopolymer impeller)
- Ambient temperature between -10 °C and +40 °C
- Max. working pressure 10 bar (6 bar for 2CP25/130N)
- Continuous service S1
OPTIONALS AVAILABLE ON REQUEST
- Special mechanical seal
- Other voltages or 60 Hz frequency
- IP55 class protection for: – 2CP32/200, – 2CP40/180, – 2CP32/210, – 2CP40/200
