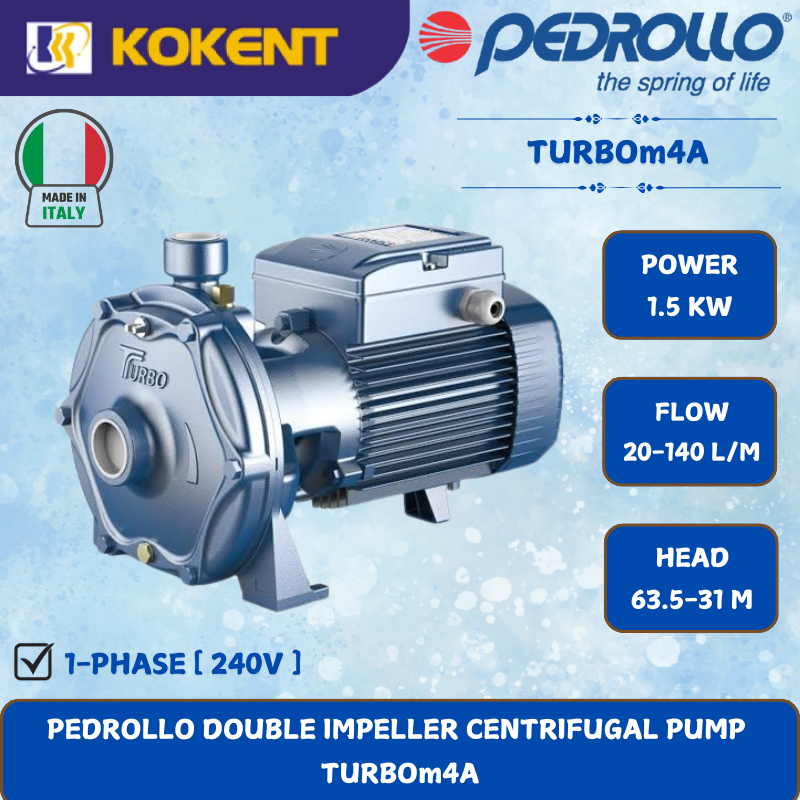

PEDROLLO DOUBLE IMPELLER CENTRIFUGAL PUMP [1.5KW.20-140L/MIN.63.5-31M/HEAD] TURBOm4A

Description

Model: Pedrollo TURBOm4A (Made in Italy)

Pedrollo TURBOm4A double impeller centrifugal electric pump. Recommended for pumping clean water. Their high efficiency and versatility make them ideal for a wide range of domestic, civil, and industrial applications particularly for water distribution using booster sets and storage tanks, mains pressure boosting, and irrigation systems.

Features

• ADVANCED HYDRAULIC REDESIGN:The new TURBO twin-impeller centrifugal pumps mark a significant step forward, thanks to an advanced hy- draulic redesign optimised through state-of-the-art flu- id dynamic simulations.
• This innovative approach has led to a flow rate increase of up to 40% (+40 litres per minute), a 9-point boost in efficiency, and a 30% reduction in noise levels all without raising energy consumption.

• Efficiency class IE3 for three-phase motors and IE2 for single-phase versions. Class F insulation and IPX4 protection rating.

Application Limit

• Temperature of the liquid from -10 °C to +90 °C
• Ambient Temperature da -10 °C to +40 °C
• Manometric suction lift up to 7 m
• Max. working pressure 10 bar

Specifications

Accessories Included

• Without cable
• Carton box
