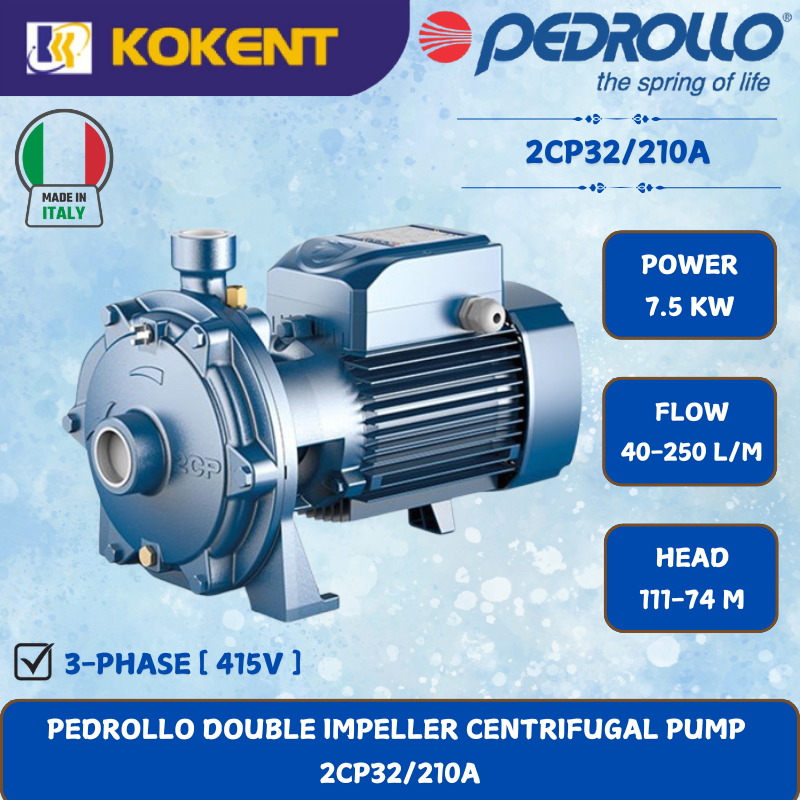

PEDROLLO DOUBLE IMPELLER CENTRIFUGAL PUMP [7.5KW.40-250L/MIN.111-74M/HEAD] 2CP32/210A

Model: 2CP32/210A (Made in Italy)

Pedrollo double impeller centrifugal electric pump.

Three phase, 415V.

Descriptions

• The high efficiency and adaptability of these pumps to even the most unusual of applications, makes them ideal for use in the domestic, civil and industrial sectors; in particular for the distribution of water in combination with pressure sets, for pressure boosting and in fire-fighting sets.
• Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
• The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Features

• Liquid type: clean water
• Uses: domestic, civil, industrial
• Applications: water supply systems, fire-fighting sets, pressure systems
• typology: surface
• Family: centrifugal

Performance Range

• Flow rate up to 450 l/min (27,0 m³/h)
• Head up to 112 m

Application Limit

• Temperature of the liquid from -10 °C to +90 °C
• Ambient Temperature da -10 °C to +40 °C
• Manometric suction lift up to 7 m
• Max. working pressure 10 bar (6 bar for 2CP25/130N)
• Continuous service S1

Specifications

Accessories Included

• Without cable
• Carton box
