Product Code: ST T/T 06E
Availability: In Stock
Loading ...
Share:

PREFER CONTACT KENT

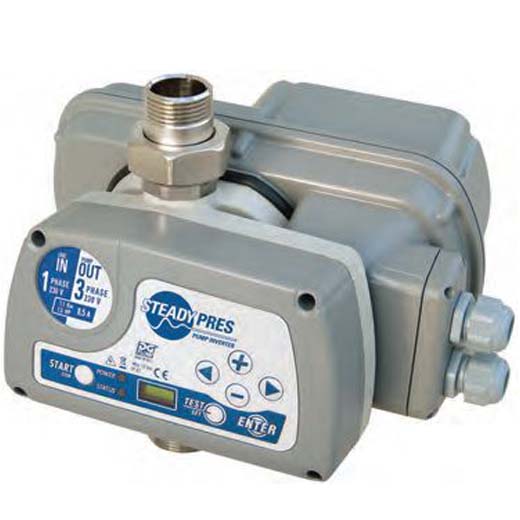

Model: ST T/T 06E (Steady Press, Variable Speed)
Invertor for Three Phase Pumps driven by Three Phase Power Supply.

Benefits

  • High energy savings (up to 70%)
  • Standing water pressure
  • Security and Reliability
  • Low load losses (0.6 bar / 160 l / min)
  • Use of Surge Tank is not necessary
  • IP 65 protection class

Technical characteristics

  • Readily available, high temperatures and humidity resistant pressure sensor
  • Flow Sensor and one-way valves, which provide a perfect seal and pump shutdown 2liter / min off flow
  •  A specially designed heat sink capacitor house, which includes a high thermal conductivity resin molded capacitors and a removable unit.

This technical solution offers three very big advantage:

  • High level of insulation
  • The efficient cooling of capacitors
  • The unit is easy interchangeability

Electronic Signs panel is placed (optional) that is on the back side of the inverter

  • Easy to install, easy to
  • Provides Communication between 2 or 3 inverter.
  • Signal input (float level switch, probe, or remote start / stop)
  • Second set point adjustment
  • An alarm or command signal output

Specifications

Power   2200 W
Phase Three Phase
Size 1" x 1"
Current                  7A
Start Pressure 1 - 9 bar
Voltage Supply 3 x 400 V
Output Voltage            3 x 400 V
Frequency 50 Hz
Thread Size (BSP) 25 mm
Max. Pressure                10 bar
