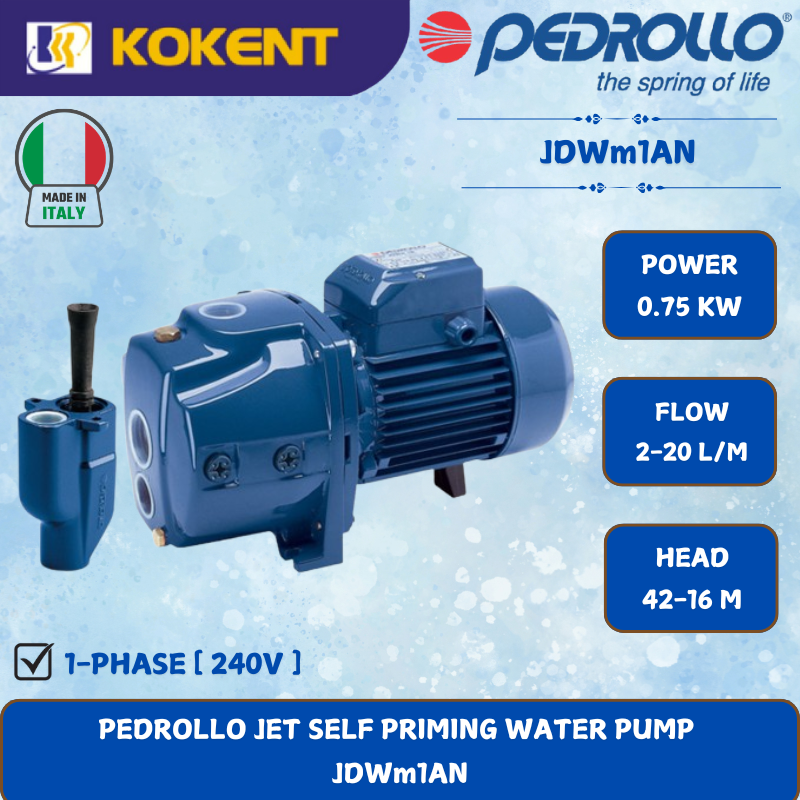

PEDROLLO JET SELF PRIMING WATER PUMP [0.75KW.2-20L/MIN.46-16,/HEAD] JDWm1AN

Description

Model: JDWm1AN

Pedrollo JET self-priming pump for deep boreholes with immersed ejector (4″).

Single phase, 240V.

Descriptions

• JDW self-priming pumps are designed for lifting water from depths greater than 9m, including cases with entrained air.
• They are recommended for domestic use including water distribution (as part of a pressure set), garden irrigation, etc.

Construction Characteristics

• PUMP BODY: cast iron, with threaded ports.
• EJECT BODY: cast iron.
• NOZZLE, VENTURI & DIFFUSER: technopolymer.
• IMPELLER: brass
• MOTOR SHAFT: stainless steel EN10068-3
• MECHANICAL SEAL: ceramic
• ELECTRIC MOTOR: the pumps are close-couple to a carefully matched PEDROLLO electric motor, quiet running, totally enclosed fan cooled, suitable for continuous duty.
• INSULATION: class F
• PROTECTION: IP44

Range of performance

• Flow rate up to 3600L/h.

Limits of use

• Manometric suction lift up to 45m.
• Liquid temperature up to +40 °C.
• Environment temperature up to +40 °C.

Specifications

Accessories included

• 4″ immersed ejector
• Carton box
