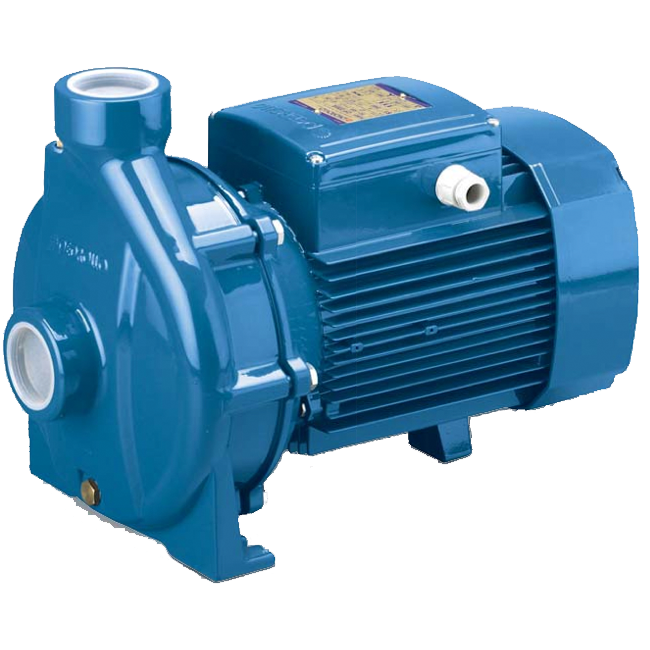

Pedrollo Monoblock Centrifugal Pump 3kW 100~850L 30~9m CP230C

Pedrollo Monoblock Centrifugal Pump 3kW 100~850L 30~9m CP230C
Pedrollo Monoblock Centrifugal Pump 3kW 100~850L 30~9m CP230C

Pedrollo Monoblock Centrifugal Pump 3kW 100~850L 30~9m CP230C

Product Code: CP230C
Availability: In Stock
Loading ...
Share:

PREFER CONTACT KENT

Model: CP230C (Three phase)

Price inclusives 6%GST.

Descriptions

  • Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
  • As a result of their reliability and the fact that they are easy to use, these pumps are widely used in civil, agricultural and industrial applications such as for supplying water, in conditioning and cooling systems, for irrigation, etc.
  • The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Performance
The range of pumps in the CP220 series has been designed to suit a wide variety of applications, with features such as

  • Long flat performance curves
  • Flat absorption curves at high delivery rates, preventing motor overloading even during prolonged use
  • Good suction capacities both at low and high delivery rates

Structural Characteristics

  • Cast iron PUMP BODY, with UNI ISO 228/1 gas threaded suction and delivery ports BRASS IMPELLER, centrifugal radial flow type, for CP220 and CP230 pumps.
  • CAST IRON IMPELLER, centrifugal radial flow type, for CP250 pumps. AISI 316 stainless steel MOTOR SHAFT.
  • Ceramic and graphite MECHANICAL SEAL MOTOR: pumps are coupled directly to an asynchronous, high efficiency PEDROLLO induction motor of suitable size, which is quiet running, closed and externally ventilated, suitable for continuous duty.

Pump Liquid: Clean Water

Use: Industrial

Type: Surface

Range: Centrifugal

Application Limits

  • Manometric suction lift up to 7 m
  • Liquid temperature between -10 °C and +90 °C
  • Ambient temperature between -10 °C and +40 °C
  • Max. working pressure 10 bar
  • Continuous service S1

Specifications

Size Discharge   2" x 2"
Power 3000 W / Three phase
Flow Rate 100 ~ 850 L/min
Head 29.5 ~ 9 meters
Manometric Suction Lift Max. 7 meters
Liquid Temperature Max. +90°C
Environment Temperature  Max. +40°C
Dimensions (L x W x H)   426mm x 230mm x 315mm
Weight 31.5 kg
