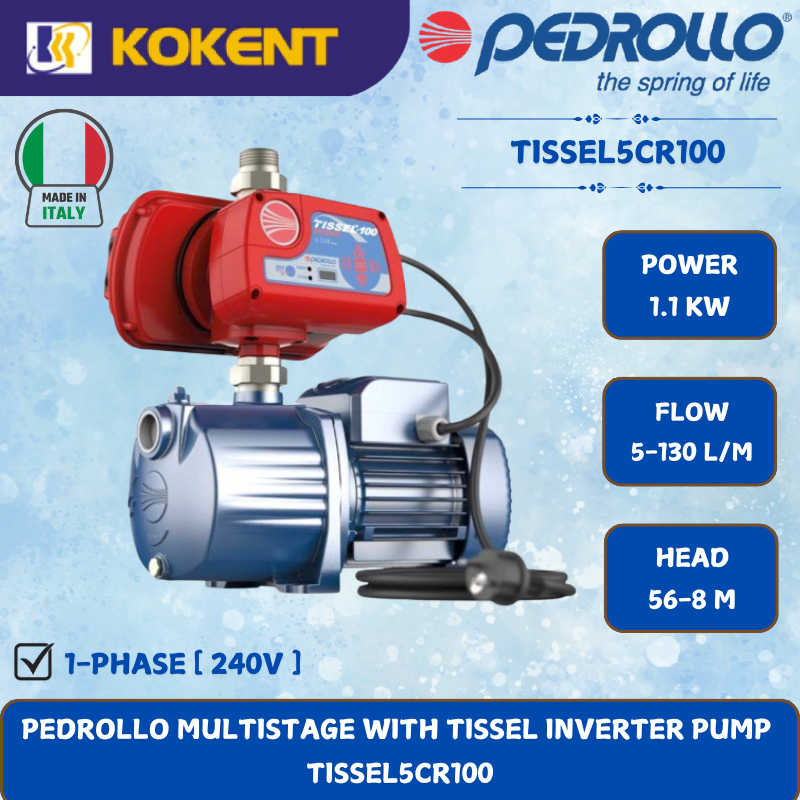

PEDROLLO MULTISTAGE WITH TISSEL INVERTER PUMP [1.1KW.5-130L/MIN.56-8M/HEAD] TISSEL4CP100

Description

Model: TISSEL5CR100 (Made in Italy)

Pedrollo multistage pump with TISSEL inverter control.

Single phase, 240V.

Features

• TISSEL 100 – 5CR 100 are compact pumping units composed by a multistage centrifugal pump 4CP 100 with an integrated speed regulator (inverter) complete with a pressure sensing device built-in.
• Sturdy and very easy to use. They are the perfect solution to get a constant pressure in every tap of the system.
• The inverter is a water cooled type, and has an IP 65 protection grade. It receives a single-phase alternate voltage (230±10% V – 50/60 Hz) and supplies a three- phase alternate output voltage which supplies the motor of the pump with an IE3 performance class.
• The wear of the water pump components is reduced due to the low speed of the motor during its duty life and it is progressively started and stopped.
• Significant energy savings in term of low flow rates.
• Dry running protection.

Application Limits

• Manometric suction lift up to 7 m
• Liquid temperature between -0°C and +40°C
• Ambient temperature up to +40°C
• Max. working pressure 7bar
• Continuous service S1
• Clean water only

Specifications

Accessories Included

• TISSEL100 Inverter
