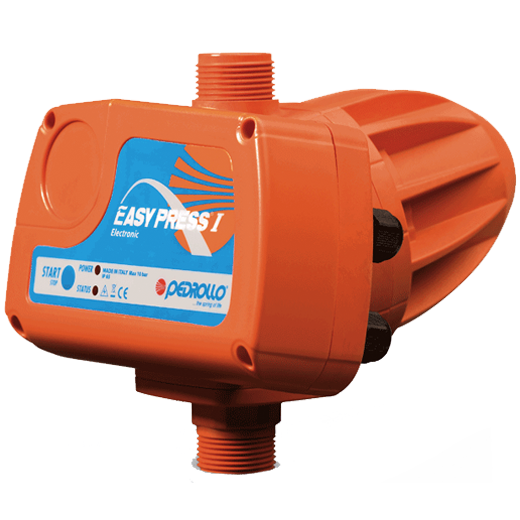

Pedrollo Pressure Control 1HP, 0.8Bar, 10A EasyPress1(0.8)

Pedrollo Pressure Control 1HP, 0.8Bar, 10A EasyPress1(0.8)
Pedrollo Pressure Control 1HP, 0.8Bar, 10A EasyPress1(0.8)

Pedrollo Pressure Control 1HP, 0.8Bar, 10A EasyPress1(0.8)

Product Code: EasyPress1(0.8)
Availability: In Stock
Loading ...
Share:

PREFER CONTACT KENT

Model: EasyPress1(0.8)

  • Suitable for waterpump from 0.5HP to 1HP (single phase).
  • Maximum delivery height: 8meters.

Price inclusives 6%GST.

Installation & Use

  • The EASYPRESS series consists of electronic devices designed to start (when a tap is turned on) and stop (when a tap is turned off) single-phase pumps.
  • The microprocessor protects the pump from dangerous working conditions, such as dry running, and allows the pump to be re- started either automatically or manually.
  • It also prevents the pump from starting-up too often when small leaks are present within an installation.

Performance Range

  • Max flow rate: 200 l/min (12 m3/h)
  • Working pressure: 10 bar
  • Start-up pressure: 1.5 bar

Applications Limits

  • Maximum liquid temperature +65 °C
  • Ambient temperature up to +40 °C
  • Burst pressure > 40 bar
  • Protection: IP 65 • VOLTAGE: 230 V - Frequency: 50/60 Hz
  • Max current:
    a) 10 A EASYPRESS I
    b) 16 A EASYPRESS II

Start-Up Pressure

  • There are three different models available to choose from.
  • Each with a different start-up pressure and easily identified by the coloured cap.
  • It positioned at the rear of EASYPRESS, suitable for delivering supply to different heights.

Construction & Safety Standards

  • The easy to replace, resin sealed circuit board offers complete protection from the effects of humidity and is housed in an IP 65 case.
  • The EASYPRESS circuit board has passed the most stringent EMC tests for electromagnetic compatibility (low interference emission and high disturbance immunity), guaranteeing reliable operation in any environment.

Specifications

Model   Easy Press 1(0.8)
Power 0.75kW (1HP)
Volt 230V (50Hz)
Current   10A
Maximum Delivery Height   8 meters
Fittings 1" x 1"
Flow Rate 200L/min
Start-Up Pressure 1.5 Bar
