Product Code: PLURIJETm3/200
Availability: In Stock
Loading ...
Share:

PREFER CONTACT KENT

Model: PLURIJETm3/200 (Single Phase)

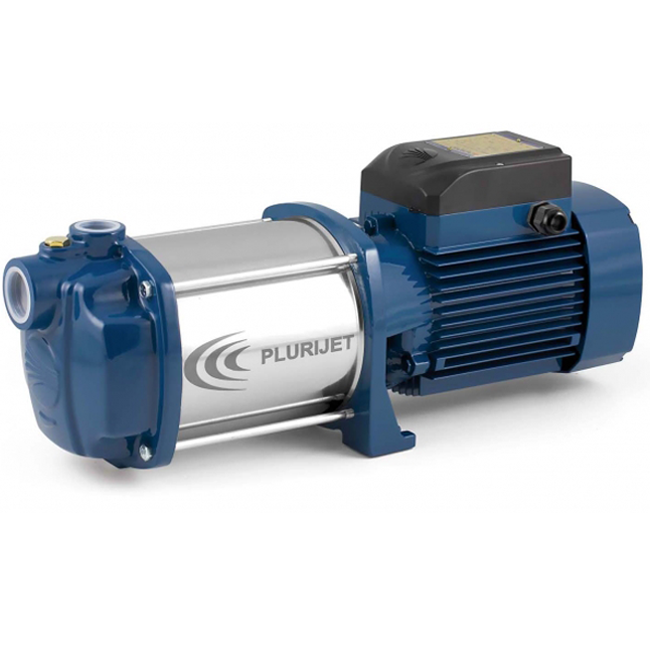

Pedrollo Self-Priming Multi-Stage Pump

Price inclusives 6%GST.

Descriptions

  • The self-priming pumps PLURIJET are designed to pump water even in the presence of air mixed with the pumped liquid.
  • For the noise, reliability and low power consumption, they are recommended for domestic and civil use, in particular for pressurizing and distribution of water in combination with pressure sets, for the recovery of rainwater, for irrigation systems etc..
  • They are recommended to suck clean water even in the presence of air mixed with the pumped liquid and liquids that are chemically non aggressive to the materials from which the pump.
  • The pump should be installed in a covered area, protected from the weather.

Pumped Liquid : Clean water

Use : Domestic, civil

Type : Surface

Area Range : Self-priming

Performance Range

  • Flow rate up to 200 l / min (12 m³ / h)
  • Head up to 97 m

Limits of Use

  • Manometric suction lift up to 9 m (HS)
  • Liquid temperature from -10 ° C up to +40 ° C
  • Ambient temperature up to +40 ° C
  • Maximum pressure in the pump body 10 bar
  • Continuous service S1

Specifications

Size Discharge   1-1/4" x 1"
Power 1100 W / Single phase
Flow Rate 5 ~ 200 L/min
Head 43.5 ~ 13 meters
Manometric Suction Lift Max. 9 meters
Liquid Temperature Max. +40°C
Environment Temperature  Max. +40°C
Dimensions (L x W x H)   571mm x 185mm x 230mm
Weight 24.8 kg
