Product Code: PLURIJETm4/80
Availability: In Stock
Loading ...
Share:

PREFER CONTACT KENT

Model: PLURIJETm4/80 (Single Phase)

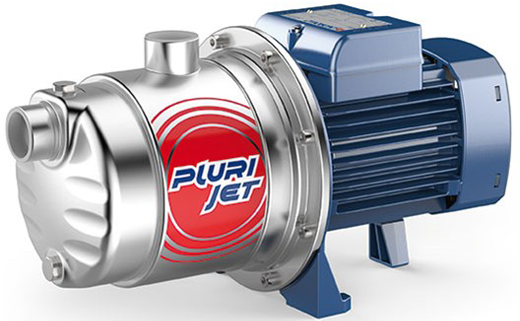

Pedrollo Self-Priming Multi-Stage Pump with New Design!

Price inclusives 6%GST.

Descriptions

  • The self-priming “PLURIJET” pumps are designed to pump water even in cases where air is present.
  • As a result of their quietness, reliability and low energy consumption they are recommended for use in domestic and civil applications such as the pressurisation and distribution of water in combination with pressure sets, and in rain water recovery and irrigation systems, etc.
  • Suitable for use with clean water even where air is present and with liquids that are not chemically aggressive towards the materials from which the pump is made.
  • The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Pumped Liquid: Clean water

Use: Domestic, civil

Type: Surface

Family: Self-priming

Performance Range

  • Flow rate up to 130 l/min (7.8 m³/h)
  • Head up to 50 m

Application Limits

  • Manometric suction lift up to 9 m (HS)
  • Liquid temperature between -10°C and +40°C
  • Ambient temperature up to +40°C
  • Max. working pressure 6 bar
  • Continuous service S1

Specifications

Size Discharge   1" x 1"
Power 600 W / Single phase
Flow Rate 5 ~ 80 L/min
Head 50 ~ 10 meters
Manometric Suction Lift Max. 9 meters
Liquid Temperature Max. +40°C
Environment Temperature  Max. +40°C
Dimensions (L x W x H)   382mm x 182mm x 182mm
Weight 12 kg
