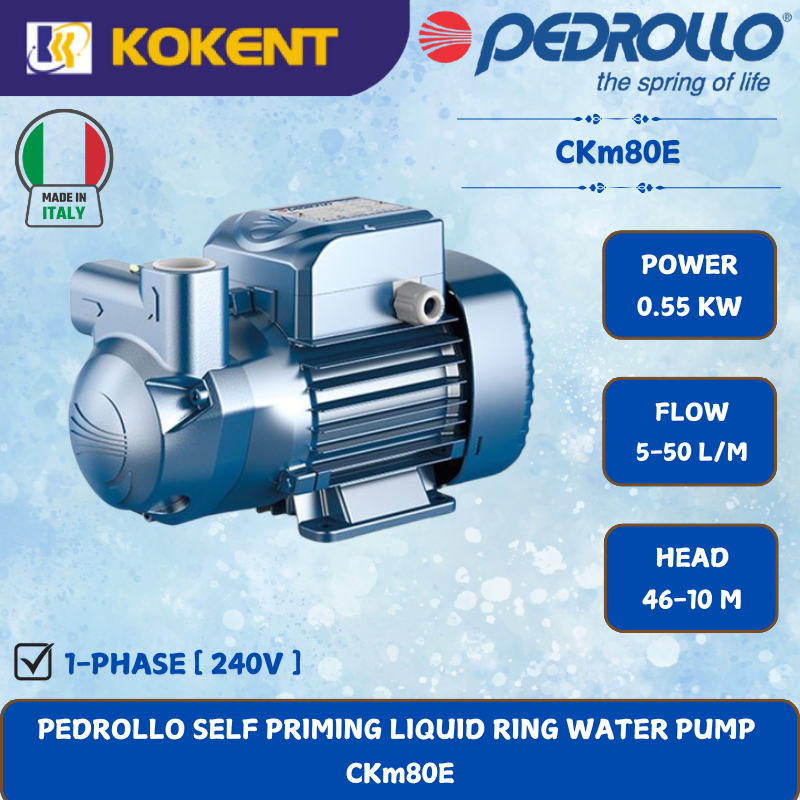

PEDROLLO SELF PRIMING LIQUID RING WATER PUMP [0.55KW.5-50L/MIN.46-10M/HEAD] CKm80E

Description

Model: CKm80E (Made in Italy)

Pedrollo self-priming liquid ring pump – for diesel.

Single phase, 240V.

Descriptions

• They are recommended for pumping diesel / naphtha, clean water without abrasive particles and chemically non-aggressive liquids for the materials making up the pump.
• Thanks to the specific operating principle, they are a happy solution in all cases where a compact self-priming pump is required or the liquid flow is low or irregular or mixed with air.
• Installation is to be carried out in enclosed or otherwise protected areas.

Features

• Liquid type: diesel, clean water
• Uses: domestic, civil, agriculture
• Uses: water supply, pressurization systems
• Type: surface
• Family: self-priming

Performance field

• Flow rate up to 50 l / min (3.0 m³ / h)
• Head up to 51 m

Employment limits

• Liquid temperature from -10 ° C up to +90 ° C
• Ambient temperature up to +40 ° C
• Manometric suction height up to 9 m (HS)
• Max pressure in the pump body 6 bar
• Continuous duty S1

Specifications

Accessories Included

• Without cable
• Carton box
