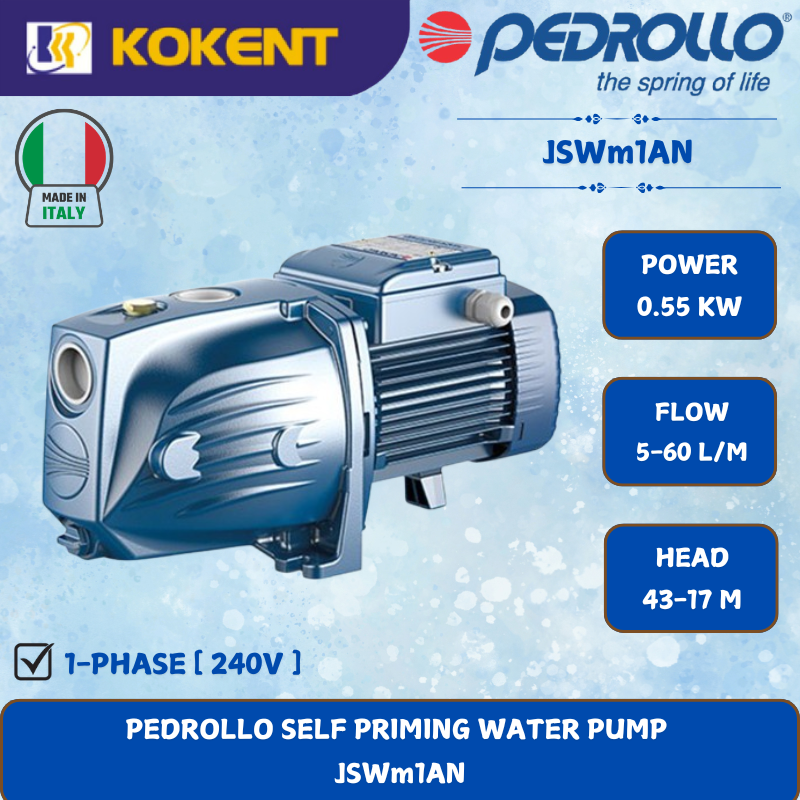

PEDROLLO SELF PRIMING WATER PUMP [0.55KW.5-60L/MIN.43-17M/HEAD] JSWm1AN

Description

Model: JSWm1AN (Made in Italy)

Pedrollo self priming water pump. It is suitable to use in cases where air is present.

Single phase, 240V

Descriptions

• Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
• The self-priming JSW pumps are designed to pump water even in cases where air is present.
• As a result of their reliability and the fact that they are easy to use, they are recommended for use in domestic applications such as the distribution of water in
  combination with small or medium sized pressure sets, and for the irrigation of gardens and allotments, etc.

Features

• Liquid type: clean water
• Uses: domestic
• Applications: water supply systems, fire-fighting sets, washing systems, pressure systems, irrigation pumps, liquids transfer
• typology: surface
• Family: self-priming

Performance Range

• Flow rate up to 60 l/min (3,6 m³/h)
• Head up to 43 m

Application Limit

• Temperature of the liquid to +40 °C
• Ambient Temperature da -10 °C to +40 °C
• Manometric suction lift up to 9 m (HS)
• Max. working pressure 6 bar
• Continuous service S1

Specifications

Accessories Included

• Without cable
• Carton box
