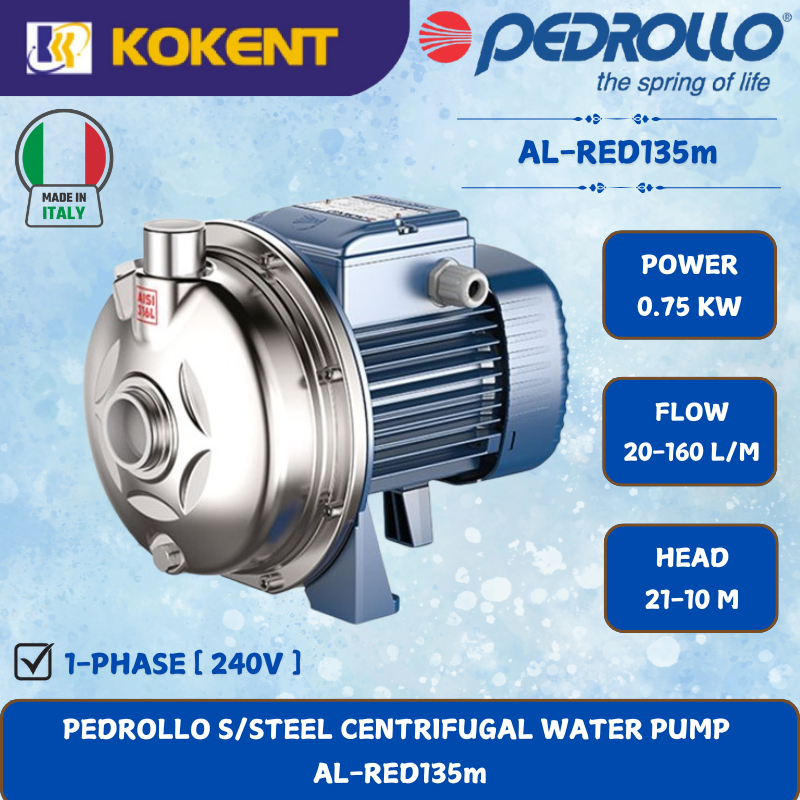

PEDROLLO S/STEEL CENTRIFUGAL WATER PUMP [0.75KW.20-160L/MIN.21-10M/HEAD] AL-RED135m

Description

Model: AL-RED135m (Made in Italy)

Pedrollo stainless steel centrifugal water pump.

Single phase, 240V.

Descriptions

• Suitable for use with clean water and with liquids that are not chemically aggressive towards the materials from which the pump is made.
• Because of its design features these centrifugal pumps are recommended for use in domestic, agricultural and industrial applications.
• All the components in contact with the pumped liquid are in stainless steel AISI 304 thus guaranteeing complete hygiene and maximum resistance against corrosion.
• The pump should be installed in an enclosed environment or sheltered from inclement weather.

Features

• Liquid type: clean water
• Uses: domestic, industrial, agriculture
• Applications: water supply systems, air conditioning systems, washing systems, cooling systems, water treatment plants, irrigation pumps
• typology: surface
• Family: centrifugal

Performance Range

• Flow rate up to 160 l/min (9,6 m³/h)
• Head up to 23 m

Application Limit

• Temperature of the liquid from -10 °C to +90 °C
• Ambient Temperature to +40 °C
• Manometric suction lift up to 7 m
• Max. working pressure: 4 Bar
• Continuous service S1

Specifications

Accessories Included

• Without cable
• Carton box
