PEDROLLO S/STEEL CENTRIFUGAL WATER PUMP [1.5KW.40-250L/MIN.30-13M/HEAD] CPm190-ST4

Description

Model: Pedrollo CPm190-ST4 (Made in Italy)

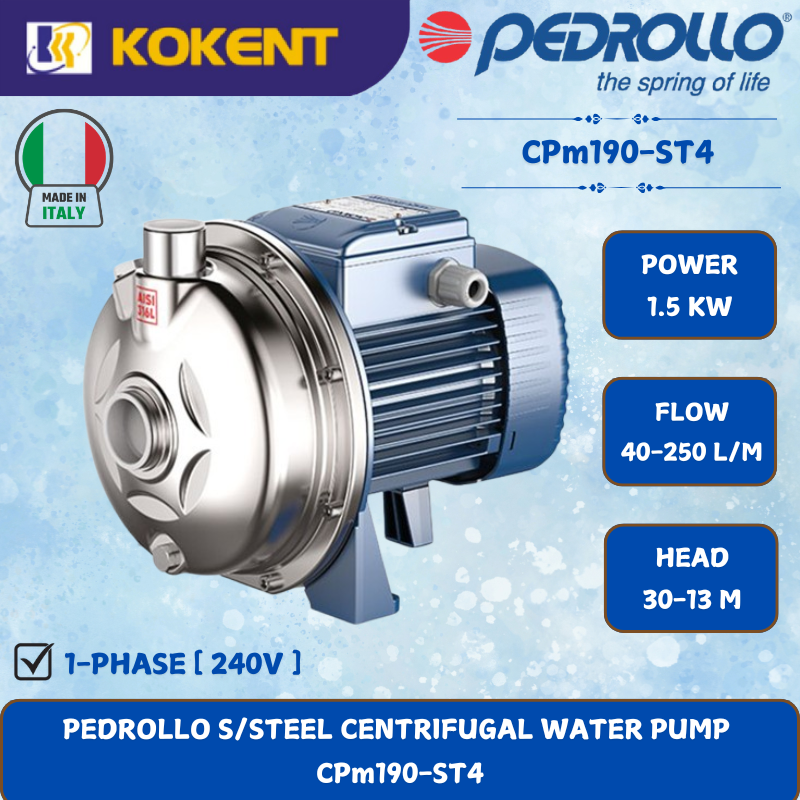

Pedrollo CPm190-ST4 stainless steel centrifugal water pump.

Descriptions

• Suitable for use with clean water and with liquids that are not chemically aggressive towards the materials from which the pump is made.
• Because of its design features these centrifugal pumps are recommended for use in domestic, agricultural and industrial applications.
• All the components in contact with the pumped liquid are in stainless steel AISI 304 or AISI 316L thus guaranteeing complete hygiene and maximum resistance against corrosion.
• The pump should be installed in an enclosed environment or sheltered from inclement weather.

Features

• Liquid type: clean water
• Uses: domestic, industrial, agriculture
• Applications: water supply systems, air conditioning systems, washing systems, cooling systems, water treatment plants, irrigation pumps
• typology: surface
• Family: centrifugal

Performance Range

• Flow rate up to 270 l/min (16,2 m³/h)
• Head up to 45 m

Application Limit

• Temperature of the liquid from -10 °C to +90 °C
• Ambient Temperature to +40 °C
• Manometric suction lift up to 7 m
• Max. working pressure:
  a) 6 bar for CP 100-130-132-150-158 ST4, CP 100-130-132-150-158 ST6
  b) 8 bar for CP 170-170M ST4, CP 170-170M ST6, CP 180-190-200 ST4, CP 180-190-200 ST6
• Continuous service S1

Specifications

Accessories Included

• Without cable
• Carton box
