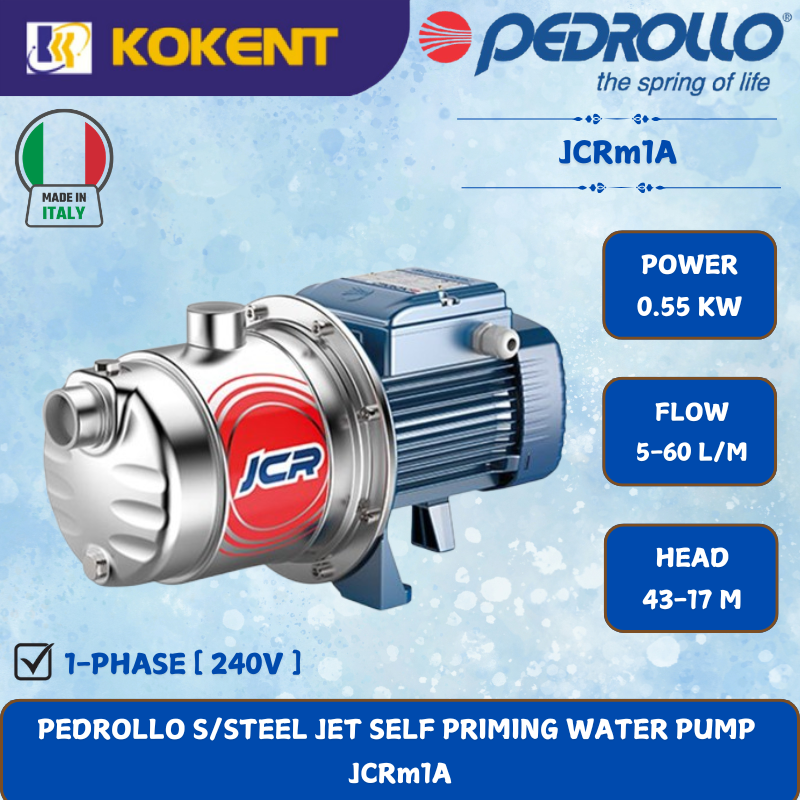

PEDROLLO S/STEEL JET SELF PRIMING WATER PUMP [0.55KW.5-60L/MIN.43-17M/HEAD] JCRm1A

Description

Model: JCRm1A

Pedrollo self priming stainless steel pump.

Single phase, 240V.

Descriptions

• The self-priming JCR pumps are designed to pump water even in cases where air is present.
• As a result of their reliability and the fact that they are easy to use, they are recommended for use in domestic applications such as the distribution of water in combination with small or medium sized pressure sets, and for the irrigation of gardens and allotments, etc.
• Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
• The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

Features

• Liquid type: clean water
• Uses: domestic
• Applications: water supply systems, pressure systems, irrigation pumps
• typology: surface
• Family: self-priming

Performance Range

• Flow rate up to 60 l/min (3,6 m³/h)
• Head up to 43 m

Application Limit

• Temperature of the liquid from -10 °C to +40 °C
• Ambient Temperature to +40 °C
• Manometric suction lift up to 9 m (HS)
• Max. working pressure 6 bar
• Continuous service S1

Specifications

Accessories Included

• Without cable
• Carton box
