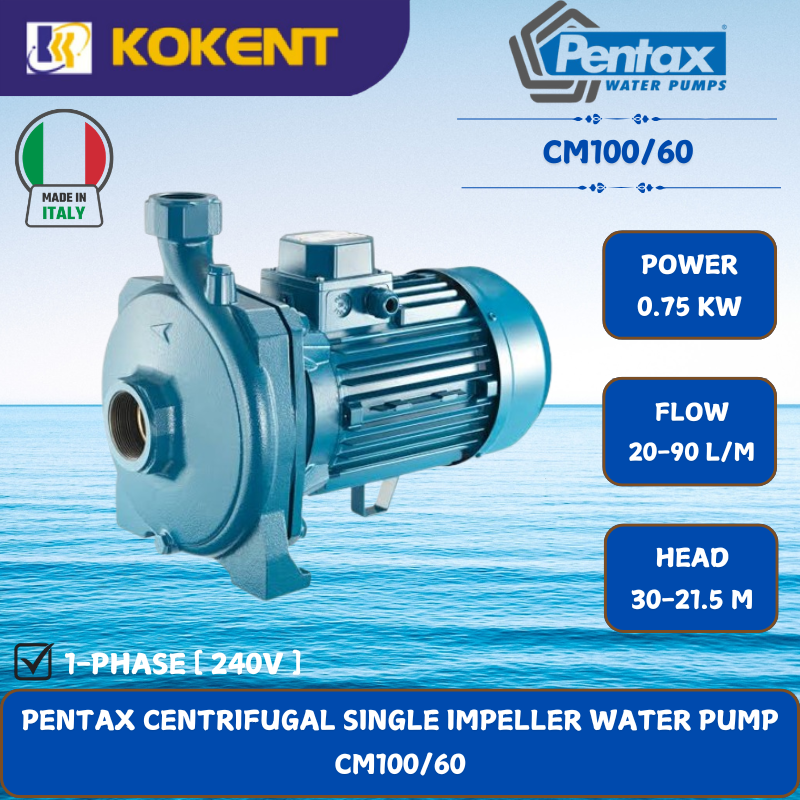

PENTAX CENTRIFUGAL SINGLE IMPELLER WATER PUMP [0.75KW.20-90L/MIN.30-21.5M/HEAD] CM100/60
Product Code: CM100/60
Availability: In Stock
Description
MODEL: Pentax CM100/60
Pentax CM100/60 is a single-impeller centrifugal pump, extremely quiet, suitable for domestic, civil and industrial applications. The pump guarantees constant pressure at the variation of flow rates.
- WITHOUT Cable
- Motor Bracket: Aluminium
- Impeller: Noryl
SPECIFICATIONS
| Size Discharge | 1″ x 1″ |
| Power | 740 W / 240V |
| Flow Rate | 20 ~ 90 L/min |
| Head | 30 ~ 21.5 meters |
| Manometric Suction Lift | Max. 6 meters |
| Dimensions (L x W x H) | 300 x 180 x 234mm |
| Weight | 14kg |
CONSTRUCTION FEATURES
| Pump body | cast iron |
|---|---|
| Motor bracket | aluminium |
| Impeller | noryl |
| Seal | ceramic-graphite-NBR |
| Pump shaft end | steel AISI 416 (45÷100) steel AISI 303 (164÷550) |
| Ambient temperature | impeller in noryl®: 0 – 50 °C brass impeller: 0 – 90 °C |
| Pump body gasket | max 6 bar (45-100) max 8 bar (164-550) |
MOTOR
| 2 poles induction motor | 3~ 230/400V-50Hz 1~ 230V-50Hz (with thermal protection up to MEC 80) |
|---|---|
| Insulation class | F |
| Protection degree | IPX4 |
