Description

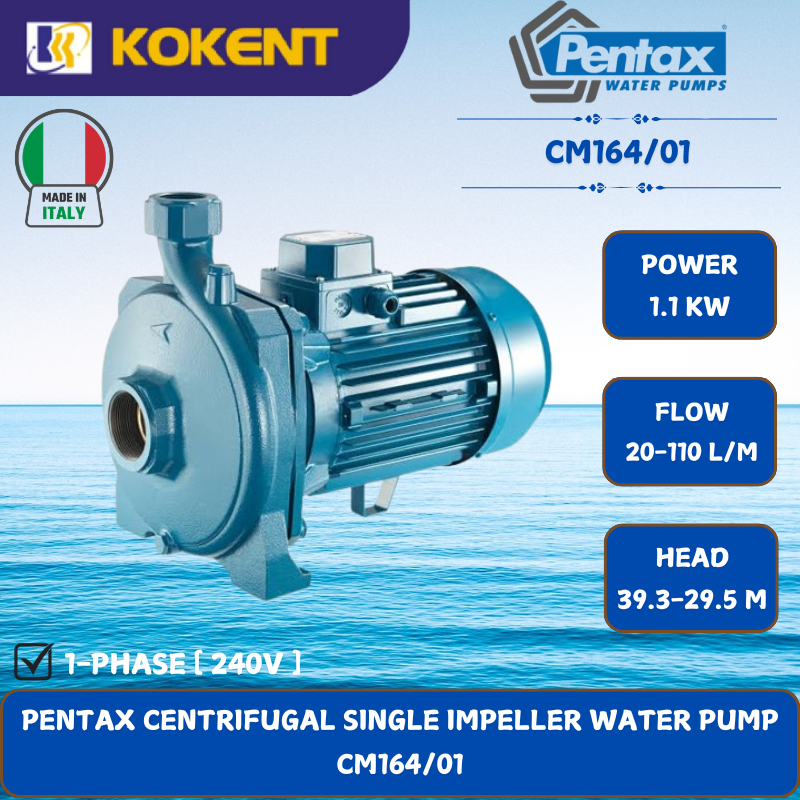

MODEL: Pentax CM164/01

Pentax CM164/01 is a single-impeller centrifugal pump, extremely quiet, suitable for domestic, civil and industrial applications. The pump guarantees constant pressure at the variation of flow rates.

  • WITHOUT Cable
  • Motor Bracket: Cast Iron
  • Impeller: Brass

SPECIFICATIONS

Size Discharge 1″ x 1″
Power 1100 W / 240V
Flow Rate 20 ~ 110 L/min
Head 39.3 ~ 29.5 meters
Manometric Suction Lift Max. 6 meters
Dimensions (L x W x H) 378 x 220 x 285mm
Weight 26kg

CONSTRUCTION FEATURES

CONSTRUCTION FEATURES
Pump body cast iron
Motor bracket cast iron (45, 50, 164÷550);
aluminum (75÷100)
Impeller noryl® (45)
noryl® or brass (50-314)
brass (400-550)
Seal ceramic-graphite-NBR
Pump shaft end steel AISI 416 (45÷100)
steel AISI 303 (164÷550)
Ambient temperature impeller in noryl®: 0 – 50 °C
brass impeller: 0 – 90 °C
Pump body gasket max 6 bar (45-100)
max 8 bar (164-550)

MOTOR

2 poles induction motor 3~ 230/400V-50Hz
1~ 230V-50Hz (with thermal protection up to MEC 80)
Insulation class F
Protection degree IPX4
