Description

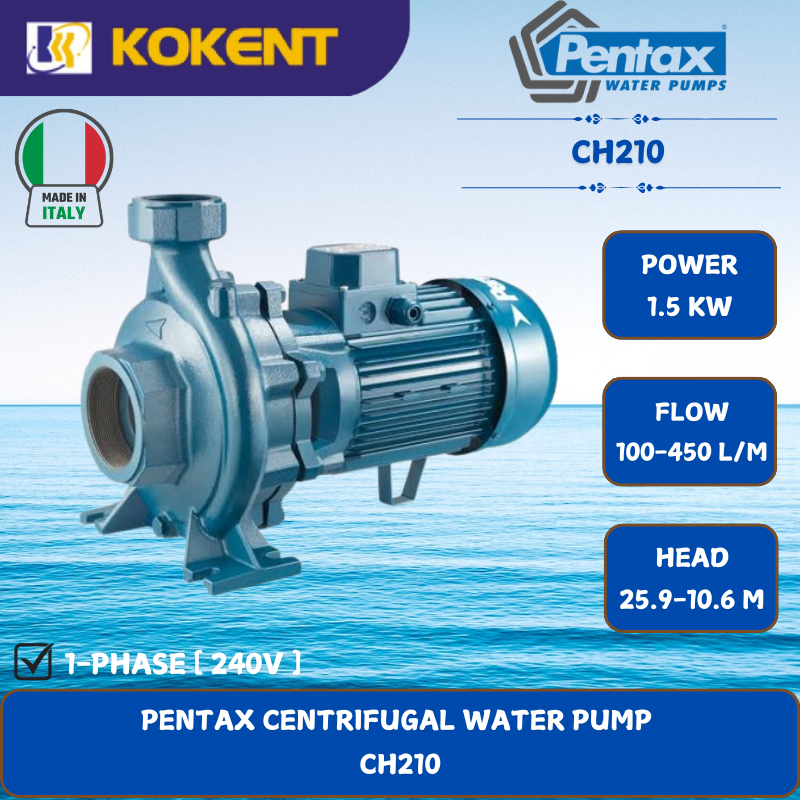

MODEL: Pentax CH210

Pentax CH210 is a centrifugal pump with medium head and flow rate. Suitable for flood and sprinkler irrigation, water withdrawal from reservoirs or canals, and industrial applications where small pressure variations are required at the variation of flow rates.

  • WITHOUT Cable
  • Motor Bracket: Cast Iron
  • Impeller: Brass Impeller

SPECIFICATIONS

Size Discharge 2″ x 2″
Power 1500 W / 240V
Flow Rate 100 ~ 450 L/min
Head 25.9 ~ 10.6 meters
Manometric Suction Lift Max. 6 meters
Dimensions (L x W x H) 395 x 200 x 285mm
Weight 27kg

CONSTRUCTION FEATURES

Pump body cast iron
Motor bracket cast iron
Impeller brass (160÷310),
cast iron (350÷550)
Seal ceramic-graphite-NBR
Pump shaft end steel AISI 303
Ambient temperature 0 – 90 °C
Pump body gasket max 6 bar

MOTOR

2 poles induction motor 3~ 230/400V-50Hz
1~ 230V-50Hz (with thermal protection up to MEC 80)
Insulation class F
Protection degree IPX4
