PENTAX CENTRIFUGAL WATER PUMP [2.2KW.100-600L/MIN.25.6-10M/HEAD] CHT350
PENTAX CENTRIFUGAL WATER PUMP [2.2KW.100-600L/MIN.25.6-10M/HEAD] CHT350

PENTAX CENTRIFUGAL WATER PUMP [2.2KW.100-600L/MIN.25.6-10M/HEAD] CHT350

Product Code: CHT350
Availability: In Stock
Loading ...
017 432 8850019 209 0701
Share:

Description

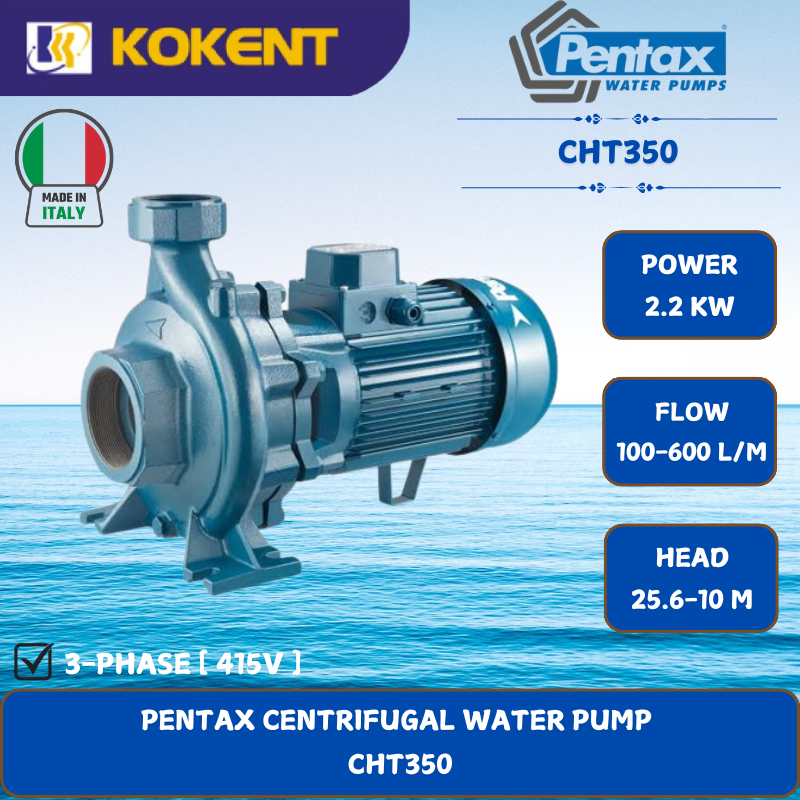

MODEL: Pentax CHT350

Pentax CHT350 is a centrifugal pump with medium head and flow rate. Suitable for flood and sprinkler irrigation, water withdrawal from reservoirs or canals, and industrial applications where small pressure variations are required at the variation of flow rates.

  • WITHOUT Cable
  • Motor Bracket: Cast Iron
  • Impeller: Cast Iron

SPECIFICATIONS

Size Discharge 3″ x 2″
Power 2200 W / 415V
Flow Rate 100 ~ 600 L/min
Head 25.6 ~ 10 meters
Manometric Suction Lift Max. 6 meters
Dimensions (L x W x H) 425 x 240 x 306mm
Weight 35kg

CONSTRUCTION FEATURES

Pump body cast iron
Motor bracket cast iron
Impeller brass (160÷310),
cast iron (350÷550)
Seal ceramic-graphite-NBR
Pump shaft end steel AISI 303
Ambient temperature 0 – 90 °C
Pump body gasket max 6 bar

MOTOR

2 poles induction motor 3~ 230/400V-50Hz
1~ 230V-50Hz (with thermal protection up to MEC 80)
Insulation class F
Protection degree IPX4
