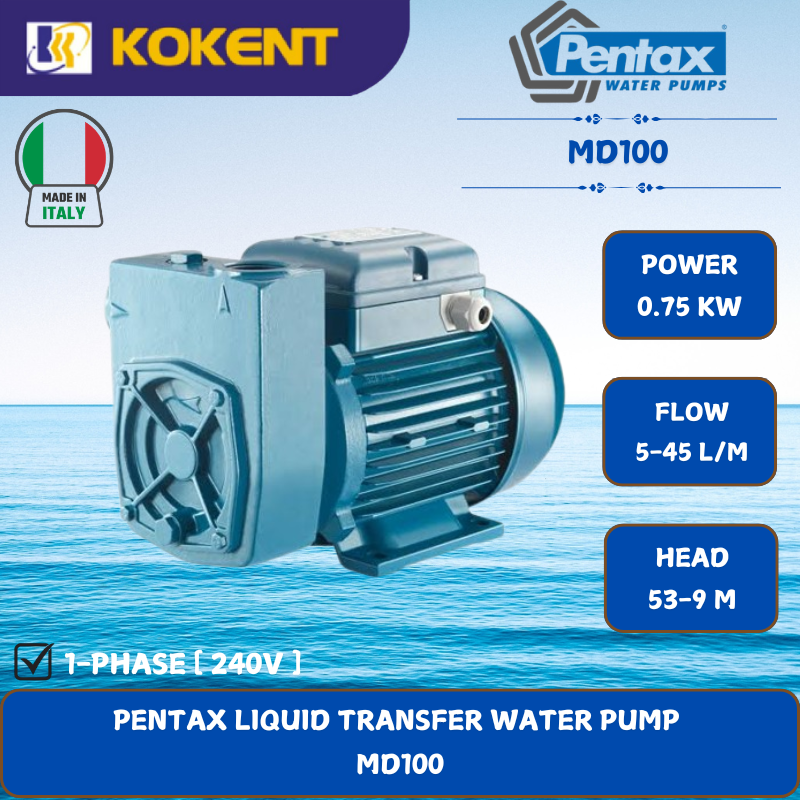

PENTAX LIQUID TRANSFER WATER PUMP [0.75KW.5-45L/MIN.53-9M/HEAD] MD100
Product Code: MD100
Availability: In Stock
Description
MODEL: Pentax MD100
Pentax MD100 is a volumetric pump with liquid ring impeller that gives considerable suction power to the pump. Particularly suitable for liquid transfer (including volatile liquids). The model has a brass front cover thus avoiding the risk of blockage.
- Brass impeller
- WITHOUT Cable
SPECIFICATIONS
| Size Discharge | 1″ x 1″ |
| Power | 0.74 W / 240V |
| Flow Rate | 5 ~ 45 L/min |
| Head | 53 ~ 9 meters |
| Manometric Suction Lift | Max. 4 meters |
| Dimensions (L x W x H) | 270 x 135 x 170mm |
| Weight | 11.8kg |
CONSTRUCTION FEATURES
| Pump body | cast iron and brass |
|---|---|
| Motor bracket | cast iron |
| Impeller | brass |
| Seal | ceramic-graphite-NBR |
| Pump shaft end | steel AISI 416 |
| Ambient temperature | 0 – 90 °C |
| Pump body gasket | max 8 bar |
MOTOR
| 2 poles induction motor | 3~ 230/400V-50Hz 1~ 230V-50Hz |
|---|---|
| Insulation class | F |
| Protection degree | IPX4 |
![PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [7.5KW.100-560L/MIN.85.3-44.3M/HEAD] CM32-200A](https://www.kokent.com.my/images/uploads/product/12030/thumb/thumb_cm32-200a.png)
![PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [7.5KW.100-560L/MIN.85.3-44.3M/HEAD] CM32-200A](https://www.kokent.com.my/images/uploads/product/12030/thumb/thumb_cm32-200a-1.png)
![PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [1.5KW.75-350L/MIN.24.4-14.1M/HEAD] CM32-160C](https://www.kokent.com.my/images/uploads/product/12029/thumb/thumb_cm32-160c-1.png)
![PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [1.5KW.75-350L/MIN.24.4-14.1M/HEAD] CM32-160C](https://www.kokent.com.my/images/uploads/product/12029/thumb/thumb_cm32-160c.png)
![PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [2.2KW.100-400L/MIN.28.5-14.8M/HEAD] CM32-160B](https://www.kokent.com.my/images/uploads/product/12028/thumb/thumb_cm32-160b.png)
![PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [2.2KW.100-400L/MIN.28.5-14.8M/HEAD] CM32-160B](https://www.kokent.com.my/images/uploads/product/12028/thumb/thumb_cm32-160b-1.png)
![PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [3KW.100-450L/MIN.36.4-23.3M/HEAD] CM32-160A](https://www.kokent.com.my/images/uploads/product/12027/thumb/thumb_cm32-160a-1.png)
![PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [3KW.100-450L/MIN.36.4-23.3M/HEAD] CM32-160A](https://www.kokent.com.my/images/uploads/product/12027/thumb/thumb_cm32-160a.png)
![PENTAX LIQUID TRANSFER WATER PUMP [0.75KW.5-45L/MIN.53-9M/HEAD] MDT100](https://www.kokent.com.my/images/uploads/product/12026/thumb/thumb_mdt100-1.png)
![PENTAX LIQUID TRANSFER WATER PUMP [0.75KW.5-45L/MIN.53-9M/HEAD] MDT100](https://www.kokent.com.my/images/uploads/product/12026/thumb/thumb_mdt100.png)
![PENTAX CENTRIFUGAL WATER PUMP [4KW.100-650L/MIN.37.8-20.7M/HEAD] CHT550](https://www.kokent.com.my/images/uploads/product/12024/thumb/thumb_cht550.png)
![PENTAX CENTRIFUGAL WATER PUMP [4KW.100-650L/MIN.37.8-20.7M/HEAD] CHT550](https://www.kokent.com.my/images/uploads/product/12024/thumb/thumb_cht550-1.png)
![PENTAX CENTRIFUGAL WATER PUMP [3KW.100-650L/MIN.30.8-13.6M/HEAD] CHT400](https://www.kokent.com.my/images/uploads/product/12023/thumb/thumb_cht400-1.png)
![PENTAX CENTRIFUGAL WATER PUMP [3KW.100-650L/MIN.30.8-13.6M/HEAD] CHT400](https://www.kokent.com.my/images/uploads/product/12023/thumb/thumb_cht400.png)

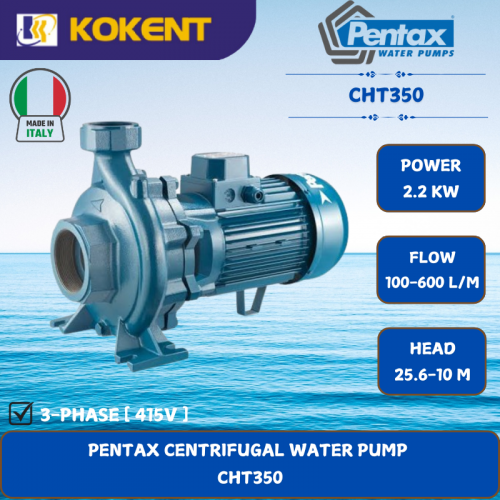

![PENTAX CENTRIFUGAL WATER PUMP [2.2KW.100-600L/MIN.25.6-10M/HEAD] CHT350](https://www.kokent.com.my/images/uploads/product/12022/thumb/thumb_cht350-1.png)
