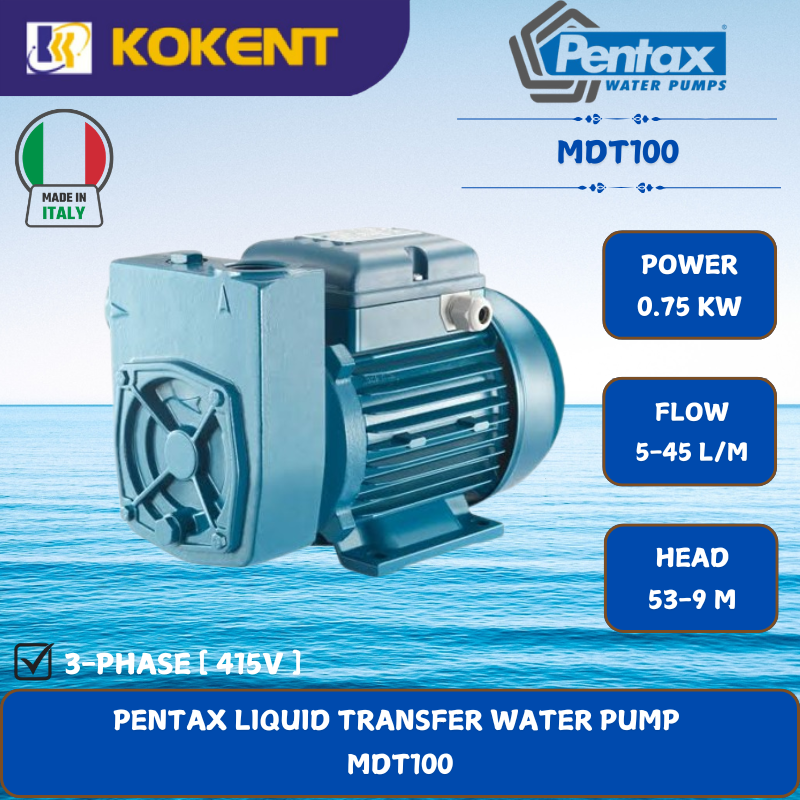

PENTAX LIQUID TRANSFER WATER PUMP [0.75KW.5-45L/MIN.53-9M/HEAD] MDT100
Product Code: MDT100
Availability: In Stock
Description
MODEL: Pentax MDT100
Pentax MDT100 is a volumetric pump with liquid ring impeller that gives considerable suction power to the pump. Particularly suitable for liquid transfer (including volatile liquids). The model has a brass front cover thus avoiding the risk of blockage.
- Brass impeller
- WITHOUT Cable
SPECIFICATIONS
| Size Discharge | 1″ x 1″ |
| Power | 0.74 W / 415V |
| Flow Rate | 5 ~ 45 L/min |
| Head | 53 ~ 9 meters |
| Manometric Suction Lift | Max. 4 meters |
| Dimensions (L x W x H) | 270 x 135 x 170mm |
| Weight | 11.8kg |
CONSTRUCTION FEATURES
| Pump body | cast iron and brass |
|---|---|
| Motor bracket | cast iron |
| Impeller | brass |
| Seal | ceramic-graphite-NBR |
| Pump shaft end | steel AISI 416 |
| Ambient temperature | 0 – 90 °C |
| Pump body gasket | max 8 bar |
MOTOR
| 2 poles induction motor | 3~ 230/400V-50Hz 1~ 230V-50Hz |
|---|---|
| Insulation class | F |
| Protection degree | IPX4 |
