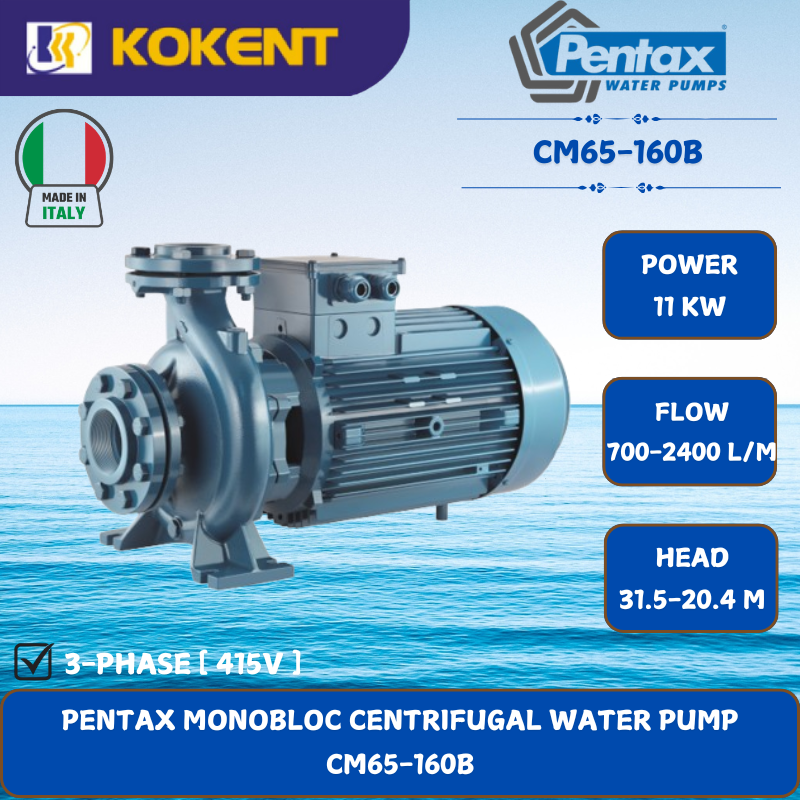

PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [11KW.700-2400L/MIN.31.5-20.4M/HEAD] CM65-160B
Product Code: CM65-160B
Availability: In Stock
Description
MODEL: Pentax CM65-160B
Pentax CM65-160B is a monobloc horizontal centrifugal pump, constructed in compliance with EN 733 standards. Front suction close-coupled centrifugal pumps with close impeller mounted on IE3 motor shaft extension. Widely used in water supplies, pressurisation and fire-fighting systems, cooling, heating, irrigation, industrial and agricultural applications; standard supply with counter-flange.
- WITHOUT Cable
- Flanges included
- Pump Body: Cast iron
- Motor Bracket: Cast Iron
- Impeller: Cast iron
SPECIFICATIONS
| Size Discharge | 3″ x 2½” |
| Power | 11000 W / 415V |
| Flow Rate | 700 ~ 2400 L/min |
| Head | 35.1 ~ 20.4 meters |
| Manometric Suction Lift | Max. 6 meters |
| Dimensions (L x W x H) | 635 x 290 x 360mm |
| Weight | 104kg |
CONSTRUCTION FEATURES
| Pump body | cast iron |
|---|---|
| Motor bracket | cast iron |
| Impeller | cast iron |
| Seal | ceramic-graphite-NBR |
| Mechanical seal | steel AISI 304 |
| Ambient temperature | -10 ÷ +90 °C |
| Pump body gasket | max 10 bar |
MOTOR
| 2 poles induction motor | 3~ 230/400V-50Hz P 4kW 3~ 400/690V-50Hz P > 4kW 1~ 230V-50Hz |
|---|---|
| Insulation class | F |
| Protection degree | IPX5 |
