PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [1.5KW.75-350L/MIN.24.4-14.1M/HEAD] CM32-160C
PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [1.5KW.75-350L/MIN.24.4-14.1M/HEAD] CM32-160C

PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [1.5KW.75-350L/MIN.24.4-14.1M/HEAD] CM32-160C

Product Code: CM32-160C
Availability: In Stock
Loading ...
017 432 8850019 209 0701
Share:

Description

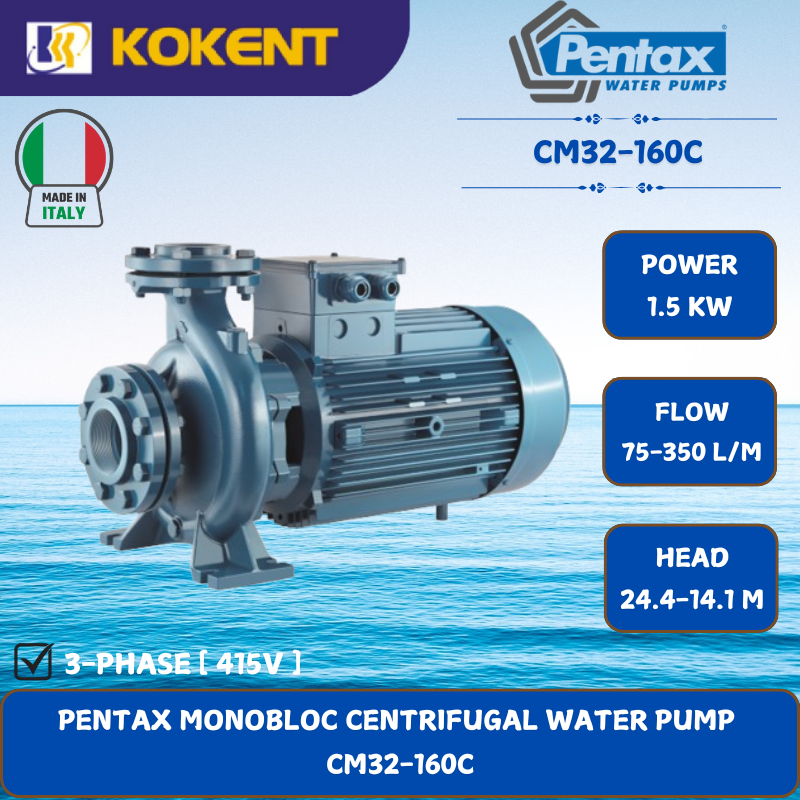

MODEL: Pentax CM32-160C

Pentax CM32-160C is a monobloc horizontal centrifugal pump, constructed in compliance with EN 733 standards. Front suction close-coupled centrifugal pumps with close impeller mounted on IE3 motor shaft extension. Widely used in water supplies, pressurisation and fire-fighting systems, cooling, heating, irrigation, industrial and agricultural applications; standard supply with counter-flange.

  • WITHOUT Cable
  • Flanges included
  • Pump Body: Cast iron
  • Motor Bracket: Cast Iron
  • Impeller: Cast iron

SPECIFICATIONS

Size Discharge 2” x 1¼”
Power 1500 W / 415V
Flow Rate 75 ~ 350 L/min
Head 24.4 ~ 14.1 meters
Manometric Suction Lift Max. 6 meters
Dimensions (L x W x H) 530 x 240 x 292mm
Weight 41kg

CONSTRUCTION FEATURES

Pump body cast iron
Motor bracket cast iron
Impeller cast iron
Seal ceramic-graphite-NBR
Mechanical seal steel AISI 304
Ambient temperature -10 ÷ +90 °C
Pump body gasket max 10 bar



MOTOR

2 poles induction motor 3~ 230/400V-50Hz P 4kW
3~ 400/690V-50Hz P > 4kW
1~ 230V-50Hz
Insulation class F
Protection degree IPX5
