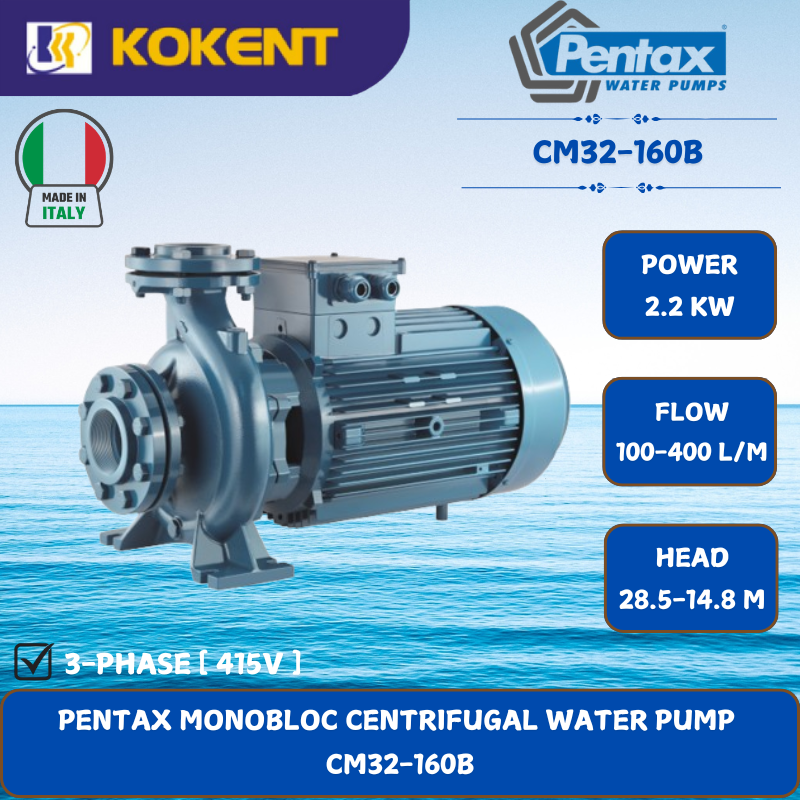

PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [2.2KW.100-400L/MIN.28.5-14.8M/HEAD] CM32-160B

  1. Home
  2. Product
  3. Electric Product
  4. Pentax
PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [2.2KW.100-400L/MIN.28.5-14.8M/HEAD] CM32-160B
PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [2.2KW.100-400L/MIN.28.5-14.8M/HEAD] CM32-160B

PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [2.2KW.100-400L/MIN.28.5-14.8M/HEAD] CM32-160B

Product Code: CM32-160B
Availability: In Stock
Loading ...
017 432 8850019 209 0701
Share:

Description

MODEL: Pentax CM32-160B

Pentax CM32-160B is a monobloc horizontal centrifugal pump, constructed in compliance with EN 733 standards. Front suction close-coupled centrifugal pumps with close impeller mounted on IE3 motor shaft extension. Widely used in water supplies, pressurisation and fire-fighting systems, cooling, heating, irrigation, industrial and agricultural applications; standard supply with counter-flange.

  • WITHOUT Cable
  • Flanges included
  • Pump Body: Cast iron
  • Motor Bracket: Cast Iron
  • Impeller: Cast iron

SPECIFICATIONS

Size Discharge 2” x 1¼”
Power 2200 W / 415V
Flow Rate 100 ~ 400 L/min
Head 28.5 ~ 14.8 meters
Manometric Suction Lift Max. 6 meters
Dimensions (L x W x H) 530 x 240 x 292mm
Weight 44kg

CONSTRUCTION FEATURES

Pump body cast iron
Motor bracket cast iron
Impeller cast iron
Seal ceramic-graphite-NBR
Mechanical seal steel AISI 304
Ambient temperature -10 ÷ +90 °C
Pump body gasket max 10 bar



MOTOR

2 poles induction motor 3~ 230/400V-50Hz P 4kW
3~ 400/690V-50Hz P > 4kW
1~ 230V-50Hz
Insulation class F
Protection degree IPX5
