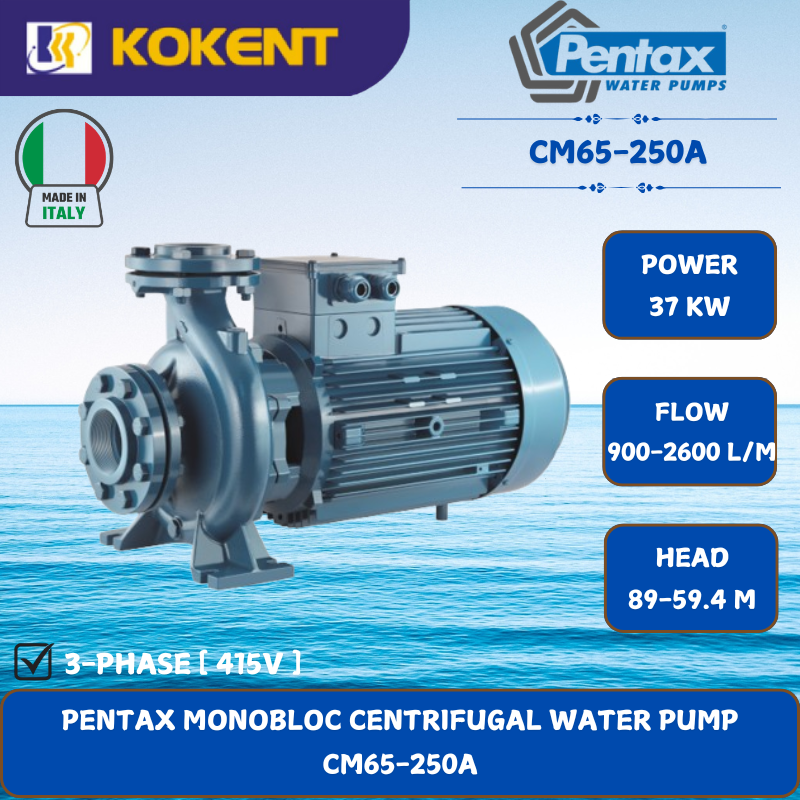

PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [37KW.900-2600L/MIN.89-59.4M/HEAD] CM65-250A

  1. Home
  2. Product
  3. Water Pump Product
  4. Pentax 2
PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [37KW.900-2600L/MIN.89-59.4M/HEAD] CM65-250A
PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [37KW.900-2600L/MIN.89-59.4M/HEAD] CM65-250A

PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [37KW.900-2600L/MIN.89-59.4M/HEAD] CM65-250A

Product Code: CM65-250A
Availability: In Stock
Loading ...
017 432 8850019 209 0701
Share:

Description

MODEL: Pentax CM65-250A

Pentax CM65-250A is a monobloc horizontal centrifugal pump, constructed in compliance with EN 733 standards. Front suction close-coupled centrifugal pumps with close impeller mounted on IE3 motor shaft extension. Widely used in water supplies, pressurisation and fire-fighting systems, cooling, heating, irrigation, industrial and agricultural applications; standard supply with counter-flange.

  • WITHOUT Cable
  • Flanges included
  • Pump Body: Cast iron
  • Motor Bracket: Cast Iron
  • Impeller: Cast iron

SPECIFICATIONS

Size Discharge 3″ x 2½”
Power 37000 W / 415V
Flow Rate 900 ~ 2600 L/min
Head 89 ~ 59.4 meters
Manometric Suction Lift Max. 6 meters
Dimensions (L x W x H) 860 x 370 x 450mm
Weight 226kg

CONSTRUCTION FEATURES

Pump body cast iron
Motor bracket cast iron
Impeller cast iron
Seal ceramic-graphite-NBR
Mechanical seal steel AISI 304
Ambient temperature -10 ÷ +90 °C
Pump body gasket max 10 bar

MOTOR

2 poles induction motor 3~ 230/400V-50Hz P 4kW
3~ 400/690V-50Hz P > 4kW
1~ 230V-50Hz
Insulation class F
Protection degree IPX5
