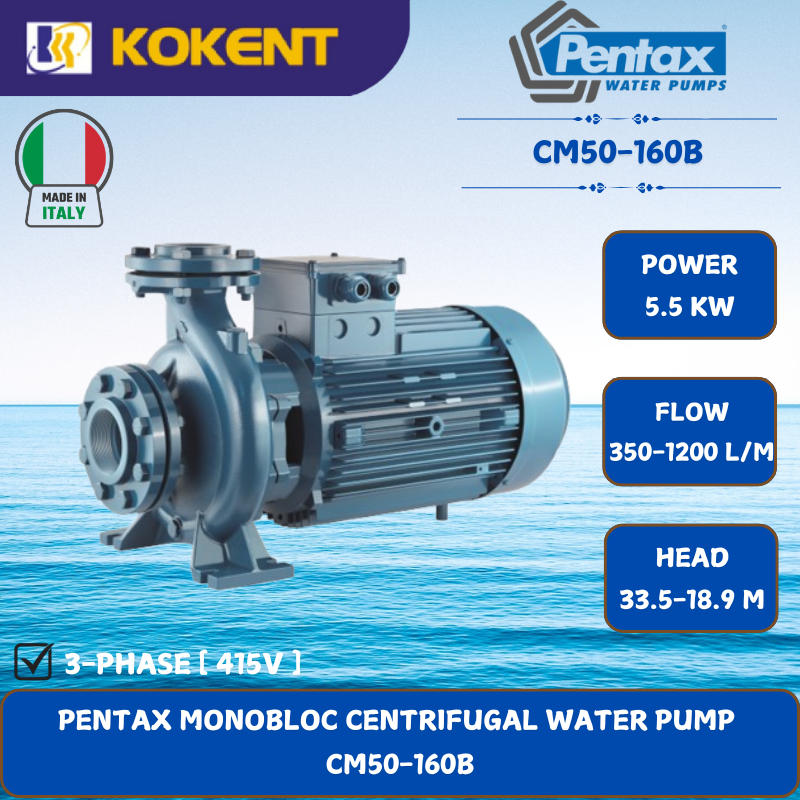

PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [5.5KW.350-1200L/MIN.33.5-18.9M/HEAD] CM50-160B
Product Code: CM50-160B
Availability: In Stock
Description
MODEL: Pentax CM50-160B
Pentax CM50-160B is a monobloc horizontal centrifugal pump, constructed in compliance with EN 733 standards. Front suction close-coupled centrifugal pumps with close impeller mounted on IE3 motor shaft extension. Widely used in water supplies, pressurisation and fire-fighting systems, cooling, heating, irrigation, industrial and agricultural applications; standard supply with counter-flange.
- WITHOUT Cable
- Flanges included
- Pump Body: Cast iron
- Motor Bracket: Cast Iron
- Impeller: Cast iron
SPECIFICATIONS
| Size Discharge | 2½”x2” |
| Power | 5500 W / 415V |
| Flow Rate | 350 ~ 1200 L/min |
| Head | 33.5 ~ 18.9 meters |
| Manometric Suction Lift | Max. 6 meters |
| Dimensions (L x W x H) | 590 x 270 x 340mm |
| Weight | 75kg |
CONSTRUCTION FEATURES
| Pump body | cast iron |
|---|---|
| Motor bracket | cast iron |
| Impeller | cast iron |
| Seal | ceramic-graphite-NBR |
| Mechanical seal | steel AISI 304 |
| Ambient temperature | -10 ÷ +90 °C |
| Pump body gasket | max 10 bar |
MOTOR
| 2 poles induction motor | 3~ 230/400V-50Hz P 4kW 3~ 400/690V-50Hz P > 4kW 1~ 230V-50Hz |
|---|---|
| Insulation class | F |
| Protection degree | IPX5 |
![PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [5.5KW.350-1100L/MIN.33.5-21.5M/HEAD] CM50-160B1](https://www.kokent.com.my/images/uploads/product/12051/thumb/thumb_cm50-160b1.png)
![PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [5.5KW.350-1100L/MIN.33.5-21.5M/HEAD] CM50-160B1](https://www.kokent.com.my/images/uploads/product/12051/thumb/thumb_cm50-160b1-1.png)
![PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [7.5KW.350-1200L/MIN.39.8-27.6M/HEAD] CM50-160A1](https://www.kokent.com.my/images/uploads/product/12049/thumb/thumb_cm50-160a1.png)
![PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [7.5KW.350-1200L/MIN.39.8-27.6M/HEAD] CM50-160A1](https://www.kokent.com.my/images/uploads/product/12049/thumb/thumb_cm50-160a1-1.png)
![PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [7.5KW.350-1300L/MIN.39.8-25.4M/HEAD] CM50-160A](https://www.kokent.com.my/images/uploads/product/12048/thumb/thumb_cm50-160a.png)
![PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [7.5KW.350-1300L/MIN.39.8-25.4M/HEAD] CM50-160A](https://www.kokent.com.my/images/uploads/product/12048/thumb/thumb_cm50-160a-1.png)
![PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [3KW.200-1200L/MIN.20.6-9.2M/HEAD] CM50-125B](https://www.kokent.com.my/images/uploads/product/12047/thumb/thumb_cm50-125b-1.png)
![PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [3KW.200-1200L/MIN.20.6-9.2M/HEAD] CM50-125B](https://www.kokent.com.my/images/uploads/product/12047/thumb/thumb_cm50-125b.png)
![PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [4KW.200-1200L/MIN.24.3-14.2M/HEAD] CM50-125A](https://www.kokent.com.my/images/uploads/product/12046/thumb/thumb_cm50-125a.png)
![PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [4KW.200-1200L/MIN.24.3-14.2M/HEAD] CM50-125A](https://www.kokent.com.my/images/uploads/product/12046/thumb/thumb_cm50-125a-1.png)
![PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [9.2KW.150-700L/MIN.62.6-49.6M/HEAD] CM40-250C](https://www.kokent.com.my/images/uploads/product/12045/thumb/thumb_cm40-250c-1.png)
![PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [9.2KW.150-700L/MIN.62.6-49.6M/HEAD] CM40-250C](https://www.kokent.com.my/images/uploads/product/12045/thumb/thumb_cm40-250c.png)
![PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [5.5KW.150-700L/MIN.45.5-29.4M/HEAD] CM40-200B](https://www.kokent.com.my/images/uploads/product/12044/thumb/thumb_cm40-200b.png)
![PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [5.5KW.150-700L/MIN.45.5-29.4M/HEAD] CM40-200B](https://www.kokent.com.my/images/uploads/product/12044/thumb/thumb_cm40-200b-1.png)

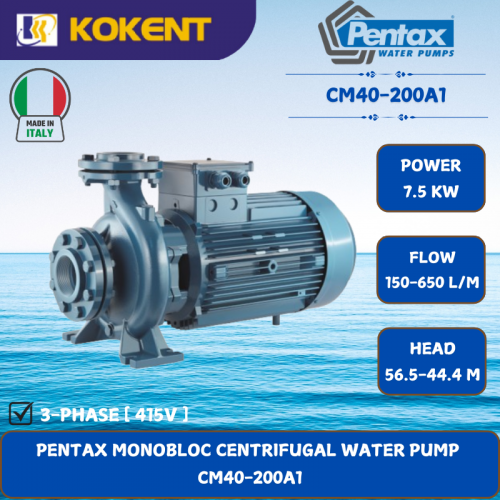

![PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [7.5KW.150-650L/MIN.56.5-44.4M/HEAD] CM40-200A1](https://www.kokent.com.my/images/uploads/product/12043/thumb/thumb_cm40-200a1.png)
