PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [7.5KW.100-560L/MIN.85.3-44.3M/HEAD] CM32-200A
PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [7.5KW.100-560L/MIN.85.3-44.3M/HEAD] CM32-200A

PENTAX MONOBLOC CENTRIFUGAL WATER PUMP [7.5KW.100-560L/MIN.85.3-44.3M/HEAD] CM32-200A

Product Code: CM32-200A
Availability: In Stock
Loading ...
017 432 8850019 209 0701
Share:

Description

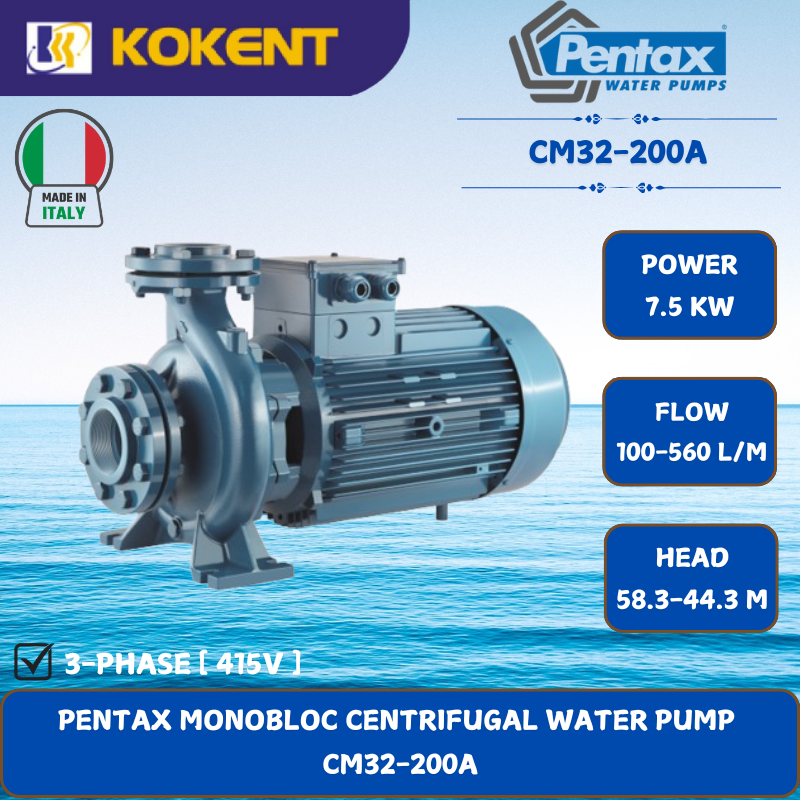

MODEL: Pentax CM32-200A

Pentax CM32-200A is a monobloc horizontal centrifugal pump, constructed in compliance with EN 733 standards. Front suction close-coupled centrifugal pumps with close impeller mounted on IE3 motor shaft extension. Widely used in water supplies, pressurisation and fire-fighting systems, cooling, heating, irrigation, industrial and agricultural applications; standard supply with counter-flange.

  • WITHOUT Cable
  • Flanges included
  • Pump Body: Cast iron
  • Motor Bracket: Cast Iron
  • Impeller: Cast iron

SPECIFICATIONS

Size Discharge 2” x 1¼”
Power 7500 W / 415V
Flow Rate 100 ~ 560 L/min
Head 58.3 ~ 44.3 meters
Manometric Suction Lift Max. 6 meters
Dimensions (L x W x H) 565 x 268 x 340mm
Weight 79kg

CONSTRUCTION FEATURES

Pump body cast iron
Motor bracket cast iron
Impeller cast iron
Seal ceramic-graphite-NBR
Mechanical seal steel AISI 304
Ambient temperature -10 ÷ +90 °C
Pump body gasket max 10 bar



MOTOR

2 poles induction motor 3~ 230/400V-50Hz P 4kW
3~ 400/690V-50Hz P > 4kW
1~ 230V-50Hz
Insulation class F
Protection degree IPX5
