PENTAX MULTISTAGE SELF PRIMING WATER PUMP [0.59KW.20-80L/MIN.29.5-13M/HEAD] MP80/3A
PENTAX MULTISTAGE SELF PRIMING WATER PUMP [0.59KW.20-80L/MIN.29.5-13M/HEAD] MP80/3A

PENTAX MULTISTAGE SELF PRIMING WATER PUMP [0.59KW.20-80L/MIN.29.5-13M/HEAD] MP80/3A

Product Code: MP80/3A
Availability: In Stock
Loading ...
017 432 8850019 209 0701
Share:

Description

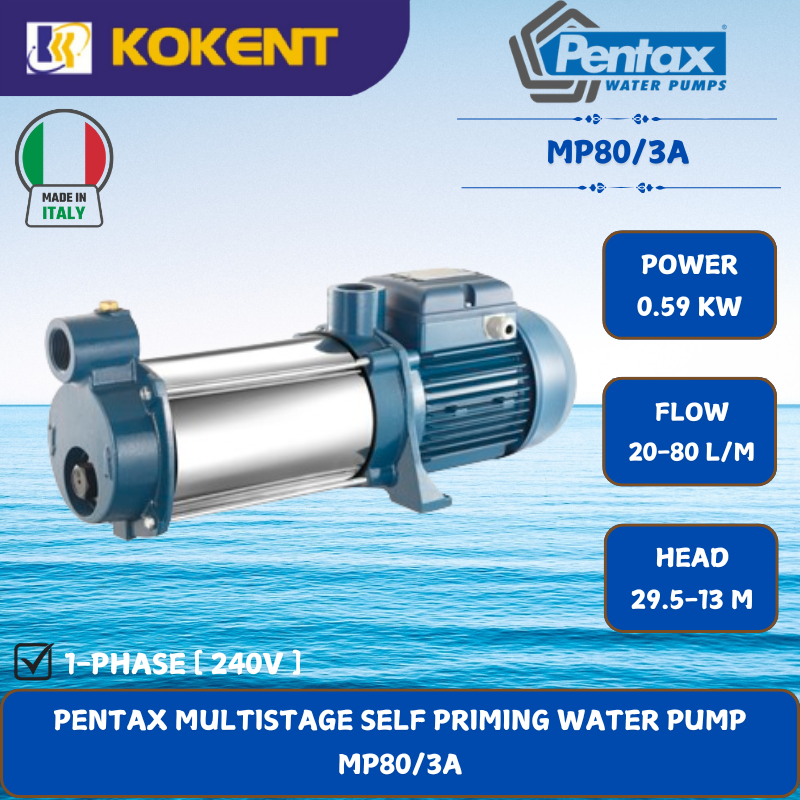

MODEL: Pentax MP80/3A

Pentax MP80/3A is a multi-stage centrifugal pump, horizontal and self-priming, particularly suitable for constructing small and medium sized pressurisation systems; able to suck liquids mixed with air or gas.

  • WITHOUT Cable

SPECIFICATIONS

Size Discharge 1″ x 1″
Power 590 W / 240V
Flow Rate 20 ~ 80 L/min
Head 29.5 ~ 13 meters
Manometric Suction Lift Max. 6 meters
Dimensions (L x W x H) 425 x 180 x 185mm
Weight 14kg

CONSTRUCTION FEATURES

Pump body cast iron
Motor bracket cast iron
Impeller noryl®
Seal ceramic-graphite-NBR
Pump shaft end steel AISI 416
Ambient temperature 0 – 50 °C
Pump body gasket max 11 bar

MOTOR

2 poles induction motor 3~ 230/400V-50Hz
1~ 230V-50Hz (with thermal protection)
Insulation class F
Protection degree IPX4
