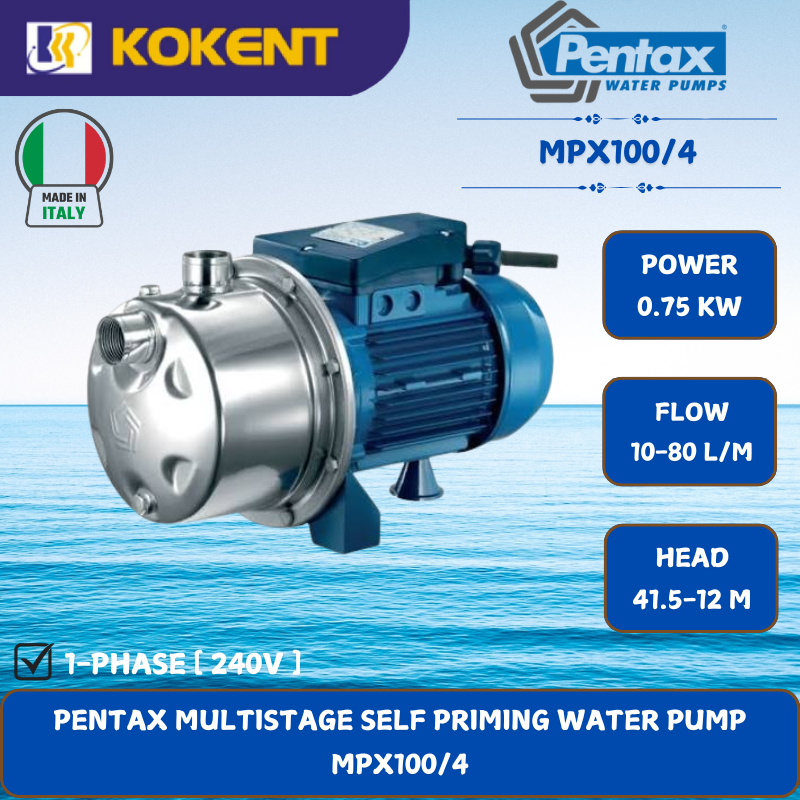

PENTAX MULTISTAGE SELF PRIMING WATER PUMP [0.75KW.10-80L/MIN.41.5-12M/HEAD] MPX100/4
Product Code: MPX100/4
Availability: In Stock
Description
MODEL: Pentax MPX100/4
Pentax MPX100/4 is a multi-stage centrifugal pumps, horizontal and self-priming, particularly suitable for constructing small and medium sized pressurisation systems; able to suck liquids mixed with air or gas.
- WITHOUT Cable
SPECIFICATIONS
| Size Discharge | 1″ x 1″ |
| Power | 740 W / 240V |
| Flow Rate | 10 ~ 80 L/min |
| Head | 41.5 ~ 12 meters |
| Manometric Suction Lift | Max. 6 meters |
| Dimensions (L x W x H) | 410 x 175 x 210mm |
| Weight | 11kg |
CONSTRUCTION FEATURES
| Pump body | steel AISI 304 |
|---|---|
| Motor bracket | aluminum |
| Impeller | noryl® |
| Seal | ceramic-graphite-NBR |
| Pump shaft end | steel AISI 416 |
| Ambient temperature | 0 – 50 °C |
| Pump body gasket | max 8 bar |
MOTOR
| 2 poles induction motor | 3~ 230/400V-50Hz 1~ 230V-50Hz (with thermal protection) |
|---|---|
| Insulation class | F |
| Protection degree | IPX4 |
