Description

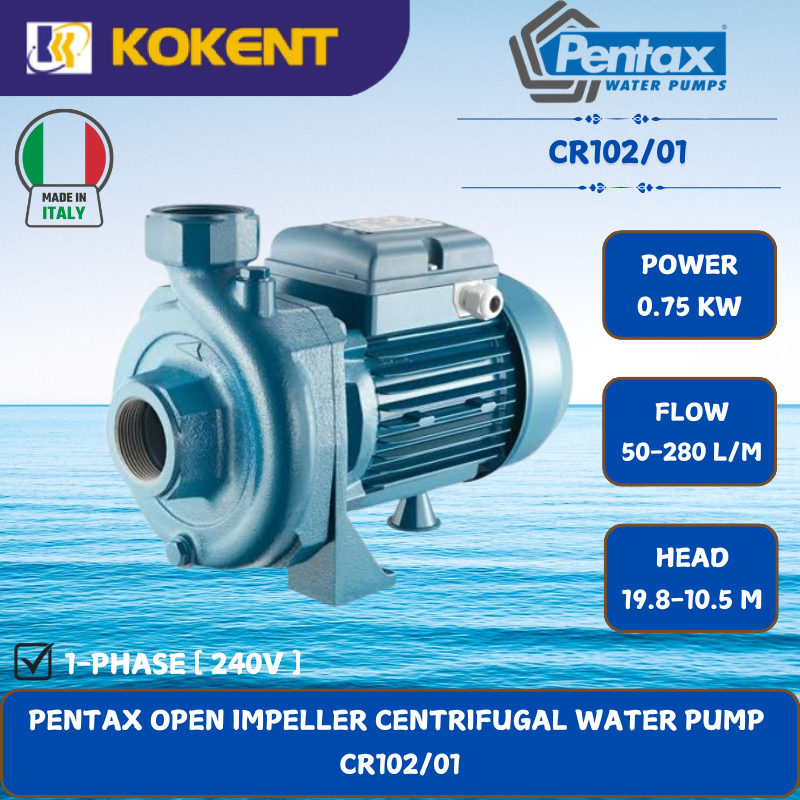

MODEL: Pentax CR102/01

Pentax CR102/01 is medium delivery centrifugal pump for agricultural applications. Equipped with an open impeller that allows the pumping of non-clean liquids, guaranteeing the free passage of small solids (Ø max. 10 mm).

  • WITHOUT Cable
  • Motor Bracket: Cast Iron
  • Impeller: Brass

SPECIFICATIONS

Size Discharge 1½” x 1½”
Power 740 W / 240V
Flow Rate 50 ~ 280 L/min
Head 19.8 ~ 10.5 meters
Manometric Suction Lift Max. 6 meters
Dimensions (L x W x H) 308 x 155 x 222mm
Weight 14kg

CONSTRUCTION FEATURES

Pump body cast iron
Motor bracket cast iron
Impeller noryl® or brass
Seal ceramic-graphite-NBR
Pump shaft end stainless steel AISI 416
Ambient temperature impeller in noryl®: 0 – 50 °C
brass impeller: 0 – 90 °C
Pump body gasket max 6 bar

MOTOR

2 poles induction motor 3~ 230/400V-50Hz
1~ 230V-50Hz (with thermal protection)
Insulation class F
Protection degree IPX4
