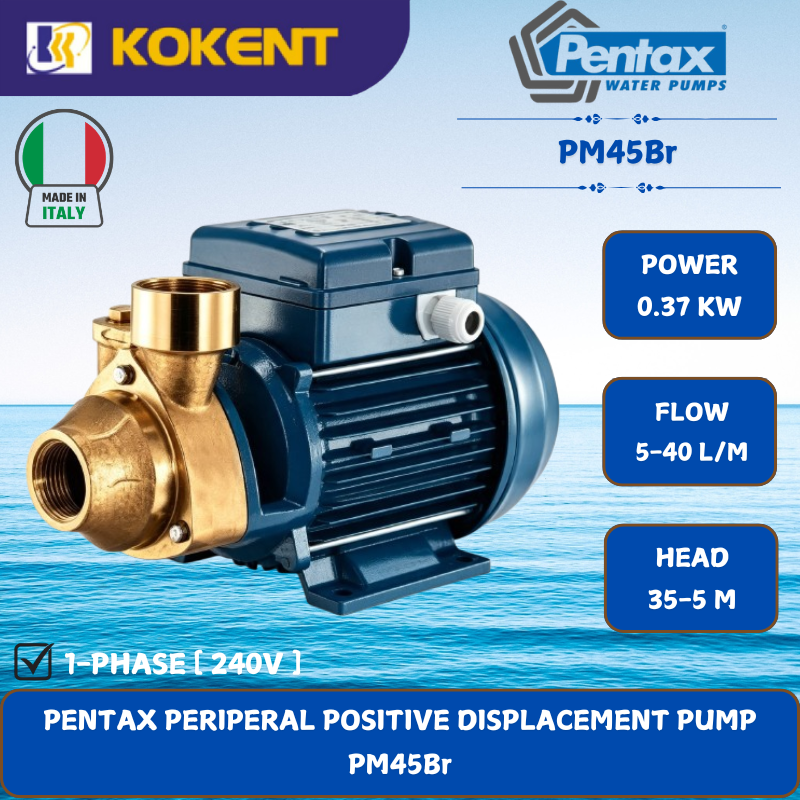

PENTAX PERIPERAL POSITIVE DISPLACEMENT PUMP [0.37KW.5-40L/MIN.35-5M/HEAD] PM45Br
Product Code: PM45Br
Availability: In Stock
Description
MODEL: Pentax PM45Br
Pentax PM45Br is a peripheral positive displacement pump with front suction (PM) for small household systems and simple industrial applications; characterised by a considerable ratio between performance and required output.
- Bronze body
- WITHOUT Cable
SPECIFICATIONS
| Size Discharge | 1″ x 1″ |
| Power | 0.370 W / 240V |
| Flow Rate | 5 ~ 40 L/min |
| Head | 35 ~ 5 meters |
| Manometric Suction Lift | Max. 6 meters |
| Dimensions (L x W x H) | 260 x 158 x 158mm |
| Weight | 6.5kg |
CONSTRUCTION FEATURES
| Pump body | bronze |
|---|---|
| Motor bracket | cast iron |
| Impeller | brass |
| Seal | ceramic-graphite-NBR |
| Pump shaft end | steel AISI 416 |
| Ambient temperature | 0 – 90 °C |
| Pump body gasket | max 6 bar (45) max 8 bar (65, 80) max 9 bar (90) |
MOTOR
| 2 poles induction motor | 3~ 230/400V-50Hz 1~ 230V-50Hz |
|---|---|
| Insulation class | F |
| Protection degree | IPX4 |
