PENTAX SELF PRIMING CENTRIFUGAL WATER PUMP [2.2KW.20-120L/MIN.59.5-39.8M/HEAD] CAMT300/01
PENTAX SELF PRIMING CENTRIFUGAL WATER PUMP [2.2KW.20-120L/MIN.59.5-39.8M/HEAD] CAMT300/01

PENTAX SELF PRIMING CENTRIFUGAL WATER PUMP [2.2KW.20-120L/MIN.59.5-39.8M/HEAD] CAMT300/01

Product Code: CAMT300/01
Availability: In Stock
Loading ...
017 432 8850019 209 0701
Share:

Description

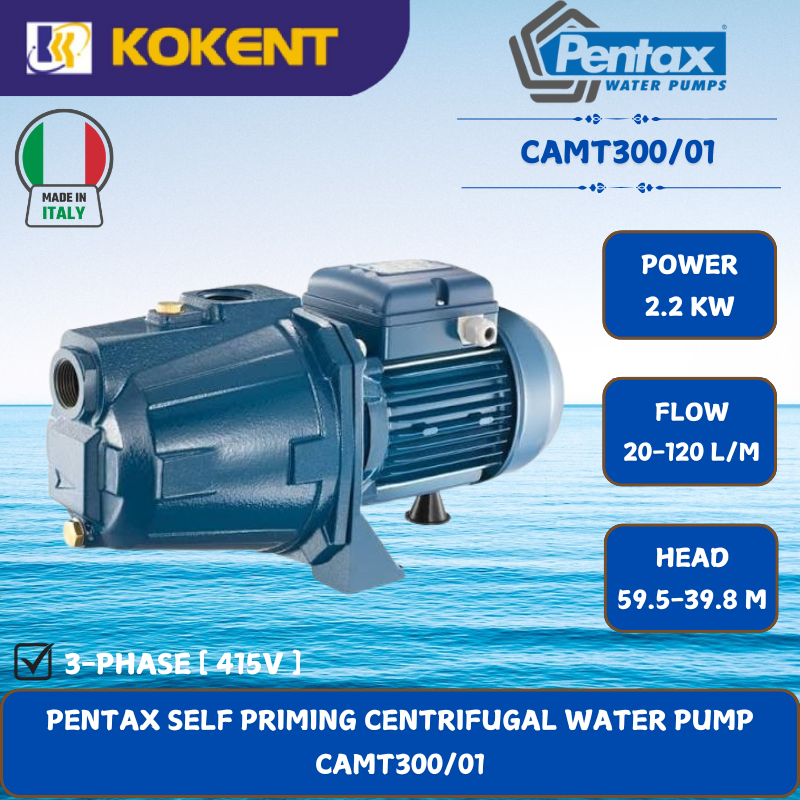

MODEL: Pentax CAMT300/01

Pentax CAMT300/01 is a self-priming centrifugal pump for water supply (even if mixed with gas) connected to autoclave tanks. Suitable for domestic installations, liquid transfer and tank emptying; also used for garden irrigation.

  • WITHOUT Cable

SPECIFICATIONS

Size Discharge 1½”x1¼”
Power 2200 W / 415V
Flow Rate 20 ~ 120 L/min
Head 59.5~39.8 meters
Manometric Suction Lift Max. 9 meters
Dimensions (L x W x H) 538 x 203 x 231mm
Weight 30kg

CONSTRUCTION FEATURES

Pump body cast iron
Motor bracket cast iron
Impeller Brass
Seal ceramic-graphite-NBR
Pump shaft end steel AISI 416
Ambient temperature 0 – 50 °C
Pump body gasket max 6 bar (50N÷75N)
max 7 bar (100N÷140)
max 8 bar (150÷300)

MOTOR

2 poles induction motor 3~ 230/400V-50Hz
1~ 230V-50Hz
Insulation class F
Protection degree IPX4
