PENTAX SINGLE IMPELLER CENTRIFUGAL WATER PUMP [1.1KW.100-800L/MIN.12.3-6M/HEAD] CST150/2
PENTAX SINGLE IMPELLER CENTRIFUGAL WATER PUMP [1.1KW.100-800L/MIN.12.3-6M/HEAD] CST150/2

PENTAX SINGLE IMPELLER CENTRIFUGAL WATER PUMP [1.1KW.100-800L/MIN.12.3-6M/HEAD] CST150/2

Product Code: CST150/2
Availability: In Stock
Loading ...
017 432 8850019 209 0701
Share:

Description

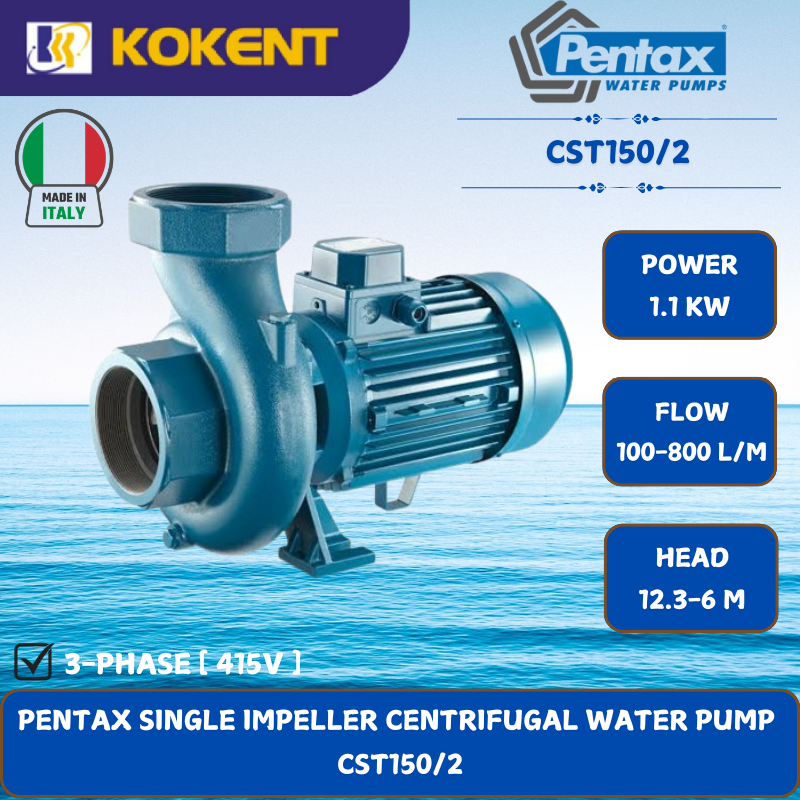

MODEL: Pentax CST150/2

Pentax CST150/2 is a Single-impeller, medium to high-flow centrifugal pump with 2″, 3″ and 4″ delivery openings. Mainly used in agriculture and applications requiring high level flow rate such as flood and sprinkler irrigation, and water withdrawal from reservoirs or canals.

  • WITHOUT Cable
  • Motor Bracket: Cast Iron
  • Impeller: Cast Iron

SPECIFICATIONS

Size Discharge 2″ x 2″
Power 1100 W / 415V
Flow Rate 100 ~ 800 L/min
Head 12.3 ~ 6 meters
Manometric Suction Lift Max. 6 meters
Dimensions (L x W x H) 400 x 180 x 285mm
Weight 27kg

CONSTRUCTION FEATURES

Pump body cast iron
Motor bracket cast iron
Impeller cast iron or brass (CSB)
Seal ceramic-graphite-NBR
Pump shaft end steel AISI 303,
steel AISI 416 (75÷120)
Ambient temperature 0 – 90 °C
Pump body gasket max 6 bar

MOTOR

2 poles induction motor 3~ 230/400V-50Hz
1~ 230V-50Hz (with thermal protection up to MEC 80)
Insulation class F
Protection degree IPX4
