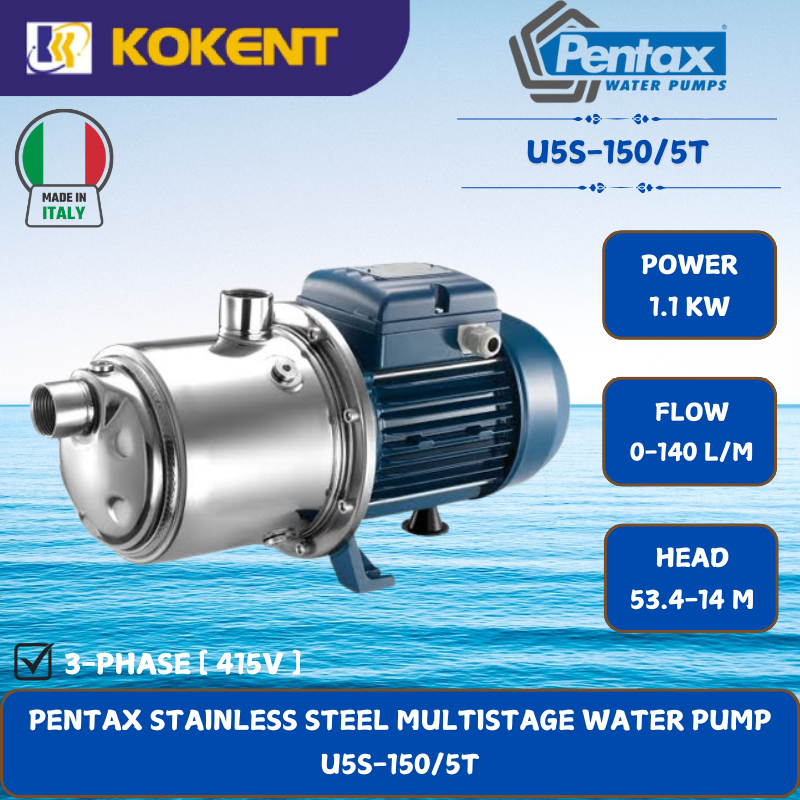

PENTAX STAINLESS STEEL MULTISTAGE WATER PUMP [1.1KW.0-140L/MIN.53.4-14M/HEAD] U5S-150/5T
Product Code: U5S-150/5T
Availability: In Stock
Description
MODEL: Pentax U5S-150/5T
Pentax U5S-150/5T is a stainless steel multistage pump with AISI304 impeller. It can use for the liquid with temperature within -15°C to +110°C. Pumping of clean non-loaded fluids, pressurizing system, irrigation, drinking and glycol water, water treatment, heating and air conditioning, washing system.
- WITHOUT Cable
- Pump Body, mechanical seal housing: Stainless steel AISI 304
- Motor Bracket: Aluminium
- Impeller, Diffusers: Stainless steel AISI 304
SPECIFICATIONS
| Size Discharge | 1″ x 1″ |
| Power | 1100 W / 4152480V |
| Flow Rate | 0 ~ 140 L/min |
| Head | 53.4 ~ 14 meters |
| Manometric Suction Lift | Max. 6 meters |
| Dimensions (L x W x H) | 466 x 164 x 198mm |
| Weight | 18.5kg |
CONSTRUCTION FEATURES
| Pump body | steel AISI 304 |
|---|---|
| Motor bracket | aluminium |
| Impeller | steel AISI 304 |
| Seal | ceramic-graphite-EPDM ≤ 6 impellers, graphite-silicon carbide-EPDM ≥ 7 impellers |
| Pump shaft end | steel AISI 304 |
| Ambient temperature | -15 ÷ +110 °C |
| Pump body gasket | max 8,5 bar |
MOTOR
| 2 poles induction motor | 3~ 230/400V-50Hz, 1~ 230V-50Hz with thermo protector up to 1.85 kW |
|---|---|
| Insulation class | F |
| Protection degree | IPX4 |
