PENTAX STAINLESS STEEL MULTISTAGE WATER PUMP [1.1KW.0-240L/MIN.32.5-10.7M/HEAD] U9S-150/3
PENTAX STAINLESS STEEL MULTISTAGE WATER PUMP [1.1KW.0-240L/MIN.32.5-10.7M/HEAD] U9S-150/3

PENTAX STAINLESS STEEL MULTISTAGE WATER PUMP [1.1KW.0-240L/MIN.32.5-10.7M/HEAD] U9S-150/3

Product Code: U9S-150/3
Availability: In Stock
Loading ...
017 432 8850019 209 0701
Share:

Description

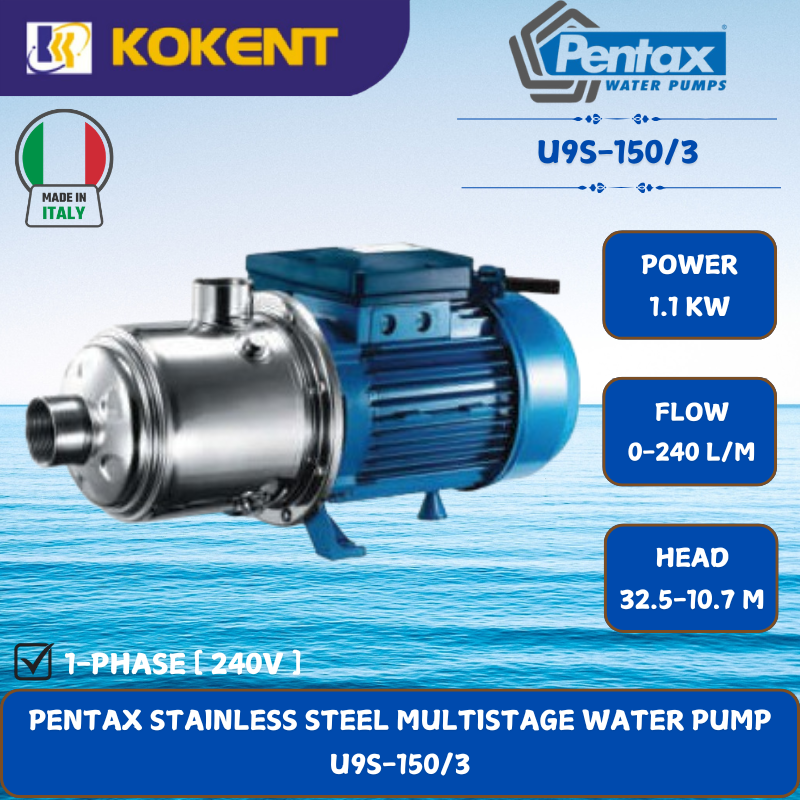

MODEL: Pentax U9S-150/3

Pentax U9S-150/3 is a stainless steel multistage pump with AISI304 impeller. It can use for the liquid with temperature within -15°C to +110°C. Pumping of clean non-loaded fluids, pressurizing system, irrigation, drinking and glycol water, water treatment, heating and air conditioning, washing system.

  • WITHOUT Cable
  • Pump Body, mechanical seal housing: Stainless steel AISI 304
  • Motor Bracket: Aluminium
  • Impeller, Diffusers: Stainless steel AISI 304

SPECIFICATIONS

Size Discharge 1½ x 1¼”
Power 1100 W / 240V
Flow Rate 0 ~ 240 L/min
Head 32.5~10.7 meters
Manometric Suction Lift Max. 6 meters
Dimensions (L x W x H) 405 x 164 x 198mm
Weight 18kg

CONSTRUCTION FEATURES

Pump body steel AISI 304
Motor bracket aluminium
Impeller steel AISI 304
Seal ceramic-graphite-EPDM ≤ 6 impellers,
graphite-silicon carbide-EPDM ≥ 7 impellers
Pump shaft end steel AISI 304
Ambient temperature -15 ÷ +110 °C
Pump body gasket max 8,5 bar

MOTOR

2 poles induction motor 3~ 230/400V-50Hz,
1~ 230V-50Hz with thermo protector up to 1.85 kW
Insulation class F
Protection degree IPX4
