Description

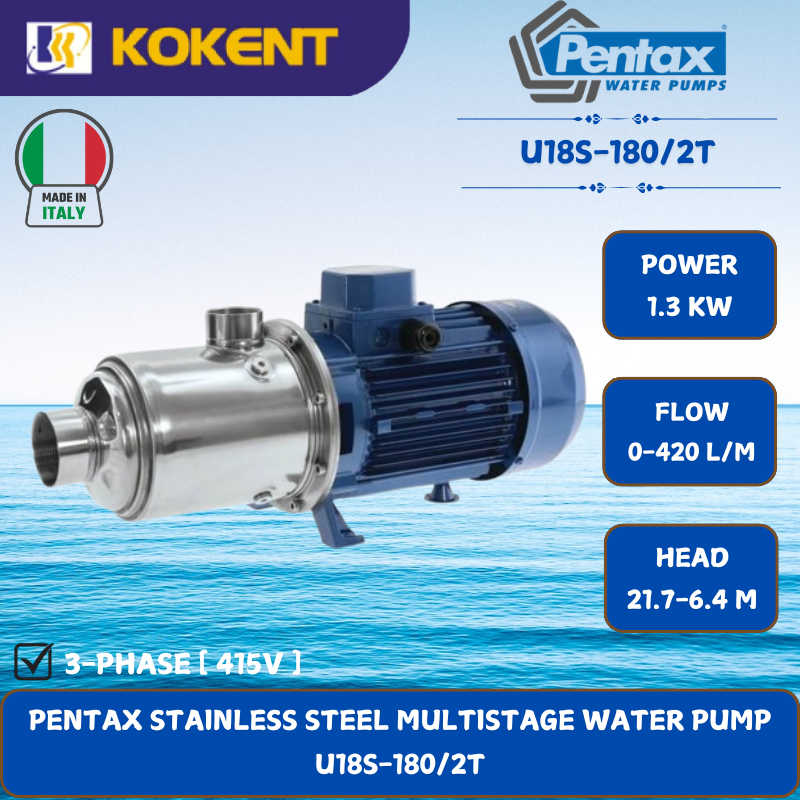

MODEL: Pentax U18S-180/2T

Pentax U18S-180/2T is a stainless steel multistage pump with AISI304 impeller. It can use for the liquid with temperature within -15°C to +110°C. Pumping of clean non-loaded fluids, pressurizing system, irrigation, drinking and glycol water, water treatment, heating and air conditioning, washing system.

  • WITHOUT Cable
  • Pump Body, mechanical seal housing: Stainless steel AISI 304
  • Motor Bracket: Aluminium
  • Impeller, Diffusers: Stainless steel AISI 304

SPECIFICATIONS

Size Discharge 2″ x 1½
Power 1300 W / 415V
Flow Rate 0 ~ 420 L/min
Head 21.7~6.4 meters
Manometric Suction Lift Max. 6 meters
Dimensions (L x W x H) 462 x 164 x 198mm
Weight 15kg

CONSTRUCTION FEATURES

Pump body steel AISI 304
Motor bracket aluminium
Impeller steel AISI 304
Seal ceramic-graphite-EPDM ≤ 6 impellers,
graphite-silicon carbide-EPDM ≥ 7 impellers
Pump shaft end steel AISI 304
Ambient temperature -15 ÷ +110 °C
Pump body gasket max 8,5 bar

MOTOR

2 poles induction motor 3~ 230/400V-50Hz,
1~ 230V-50Hz with thermo protector up to 1.85 kW
Insulation class F
Protection degree IPX4
