PENTAX TWO IMPELLER CENTRIFUGAL WATER PUMP [0.75KW.10-80L/MIN.40.8-21M/HEAD] CB100/01
PENTAX TWO IMPELLER CENTRIFUGAL WATER PUMP [0.75KW.10-80L/MIN.40.8-21M/HEAD] CB100/01

PENTAX TWO IMPELLER CENTRIFUGAL WATER PUMP [0.75KW.10-80L/MIN.40.8-21M/HEAD] CB100/01

Product Code: CB100/01
Availability: In Stock
Loading ...
017 432 8850019 209 0701
Share:

Description

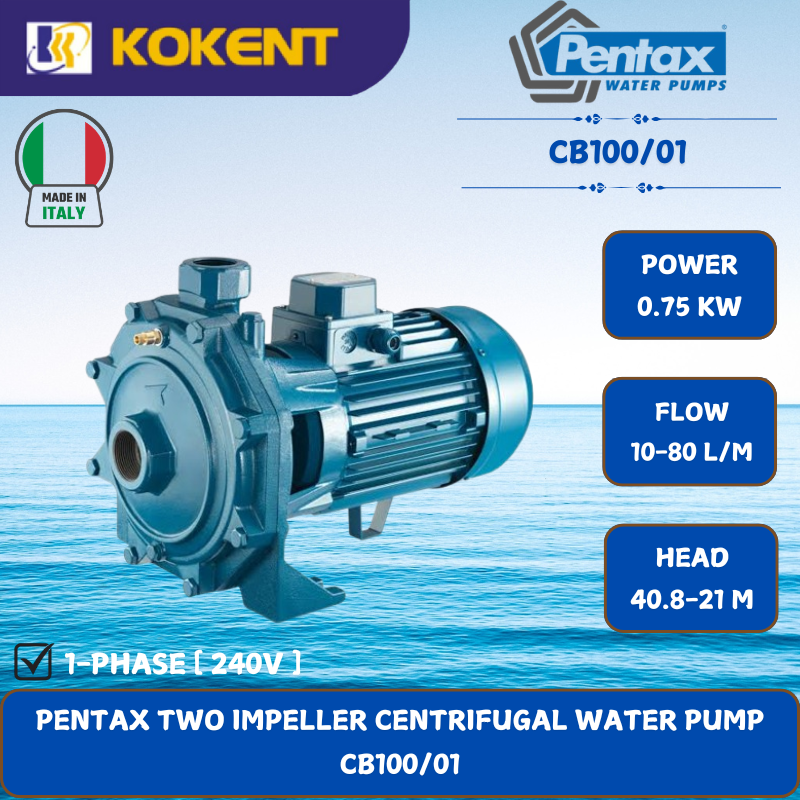

MODEL: Pentax CB100/01

Pentax CB100/01 is a two impeller centrifugal pumps for constructing pressurisation systems for civil and industrial plant; the two counter-posed impellers guarantee high head and flow rate.

  • WITHOUT Cable
  • Motor Bracket: Cast Iron
  • Impeller: Brass Impeller

SPECIFICATIONS

Size Discharge 1″ x 1″
Power 740 W / 240V
Flow Rate 10 ~ 80 L/min
Head 40.8 ~ 21 meters
Manometric Suction Lift Max. 6 meters
Dimensions (L x W x H) 328 x 180 x 228mm
Weight 15kg

CONSTRUCTION FEATURES

Pump body cast iron
Motor bracket cast iron
Impeller noryl® or brass (100÷900)
brass (800÷1500)
Seal ceramic-graphite-NBR
Pump shaft end stainless steel AISI 303
stainless steel AISI 416 (100)
Ambient temperature impeller in noryl®: 0 – 50 °C
brass impeller: 0 – 90 °C
Pump body gasket max 6 bar (100)
max 11 bar (160-1500)

MOTOR

2 poles induction motor 3~ 230/400V-50Hz P 4kW
3~ 400/690V-50Hz P > 4kW
1~ 230V-50Hz (with thermal protection up to MEC 80)
Insulation class F
Protection degree IPX4
IPX5 (800÷1500)
