PENTAX TWO IMPELLER CENTRIFUGAL WATER PUMP [1.5KW.40-170L/MIN.41.8-26M/HEAD] MBT200/01
PENTAX TWO IMPELLER CENTRIFUGAL WATER PUMP [1.5KW.40-170L/MIN.41.8-26M/HEAD] MBT200/01

PENTAX TWO IMPELLER CENTRIFUGAL WATER PUMP [1.5KW.40-170L/MIN.41.8-26M/HEAD] MBT200/01

Product Code: MBT200/01
Availability: In Stock
Loading ...
017 432 8850019 209 0701
Share:

Description

MODEL: Pentax MB200/00

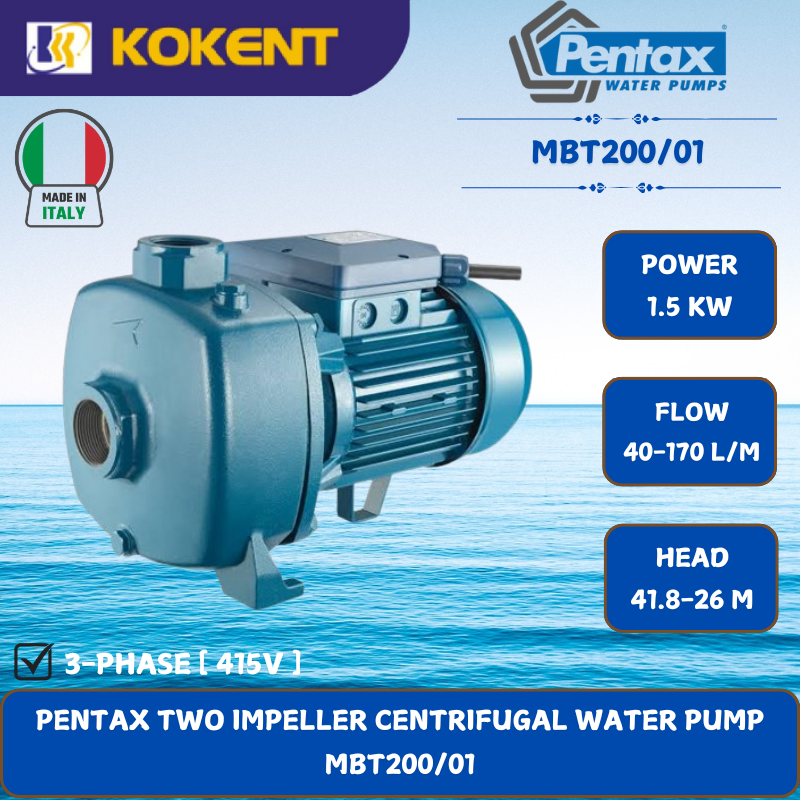

Pentax MBT200/01 is a two impeller compact centrifugal pump for constructing pressurisation systems for civil and industrial plant: guarantee good ratio between pressure and flow rate.

  • WITHOUT Cable
  • Motor Bracket: Cast Iron
  • Impeller: Brass

SPECIFICATIONS

Size Discharge 1½” x 1¼”
Power 1500 W / 415V
Flow Rate 40 ~ 170 L/min
Head 41.8 ~ 26 meters
Manometric Suction Lift Max. 6 meters
Dimensions (L x W x H) 415 x 205 x 242mm
Weight 25kg

CONSTRUCTION FEATURES

CONSTRUCTION FEATURES
Pump body cast iron
Motor bracket cast iron
Impeller noryl® or brass
Seal ceramic-graphite-NBR
Pump shaft end steel AISI 303
Ambient temperature 0 – 50 °C
Pump body gasket max 8 bar

MOTOR

2 poles induction motor 3~ 230/400V-50Hz
1~ 230V-50Hz (with thermal protection)
Insulation class F
Protection degree IPX4
