Description

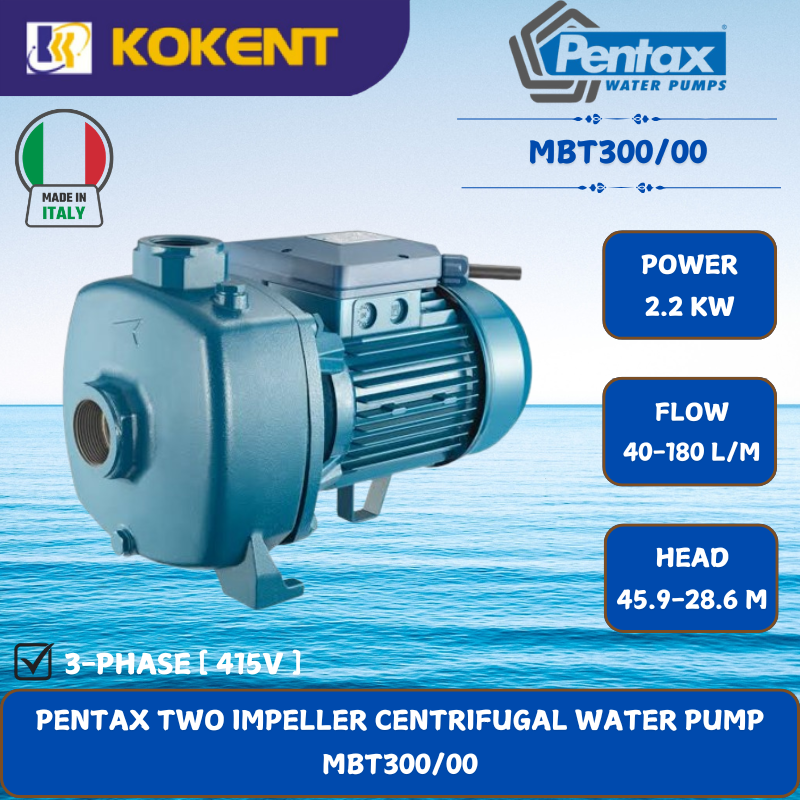

MODEL: Pentax MBT300/00

Pentax MB300/00 is a two impeller compact centrifugal pump for constructing pressurisation systems for civil and industrial plant: guarantee good ratio between pressure and flow rate.

  • WITHOUT Cable
  • Motor Bracket: Cast Iron
  • Impeller: Noryl

SPECIFICATIONS

Size Discharge 1½” x 1¼”
Power 2200 W / 415V
Flow Rate 40 ~ 180 L/min
Head 45.9 ~ 28.6 meters
Manometric Suction Lift Max. 6 meters
Dimensions (L x W x H) 415 x 205 x 242mm
Weight 27kg

CONSTRUCTION FEATURES

CONSTRUCTION FEATURES
Pump body cast iron
Motor bracket cast iron
Impeller noryl® or brass
Seal ceramic-graphite-NBR
Pump shaft end steel AISI 303
Ambient temperature 0 – 50 °C
Pump body gasket max 8 bar

MOTOR

2 poles induction motor 3~ 230/400V-50Hz
1~ 230V-50Hz (with thermal protection)
Insulation class F
Protection degree IPX4
