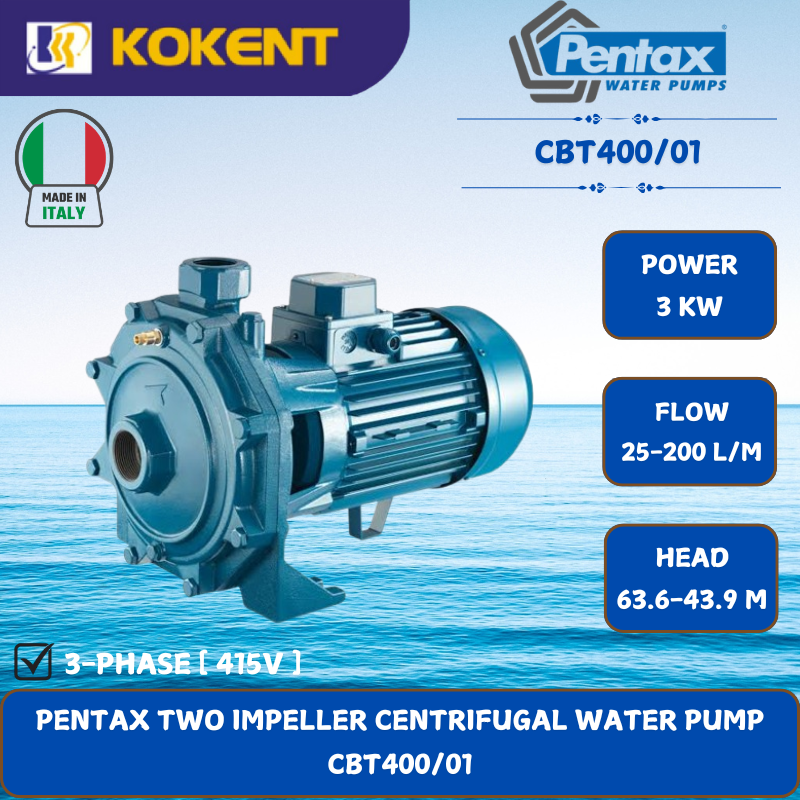

PENTAX TWO IMPELLER CENTRIFUGAL WATER PUMP [3KW.25-200L/MIN.63.6-43.9M/HEAD] CBT400/01
Product Code: CBT400/01
Availability: In Stock
Description
MODEL: Pentax CBT400/01
Pentax CBT400/01 is a two impeller centrifugal pumps for constructing pressurisation systems for civil and industrial plant; the two counter-posed impellers guarantee high head and flow rate.
- WITHOUT Cable
- Motor Bracket: Cast Iron
- Impeller: Brass Impeller
SPECIFICATIONS
| Size Discharge | 1½” x 1¼” |
| Power | 3000 W / 415V |
| Flow Rate | 25 ~ 200 L/min |
| Head | 63.6 ~ 43.9 meters |
| Manometric Suction Lift | Max. 6 meters |
| Dimensions (L x W x H) | 498 x 266 x 305mm |
| Weight | 44kg |
CONSTRUCTION FEATURES
| Pump body | cast iron |
|---|---|
| Motor bracket | cast iron |
| Impeller | noryl® or brass (100÷900) brass (800÷1500) |
| Seal | ceramic-graphite-NBR |
| Pump shaft end | stainless steel AISI 303 stainless steel AISI 416 (100) |
| Ambient temperature | impeller in noryl®: 0 – 50 °C brass impeller: 0 – 90 °C |
| Pump body gasket | max 6 bar (100) max 11 bar (160-1500) |
MOTOR
| 2 poles induction motor | 3~ 230/400V-50Hz P 4kW 3~ 400/690V-50Hz P > 4kW 1~ 230V-50Hz (with thermal protection up to MEC 80) |
|---|---|
| Insulation class | F |
| Protection degree | IPX4 IPX5 (800÷1500) |
