Description

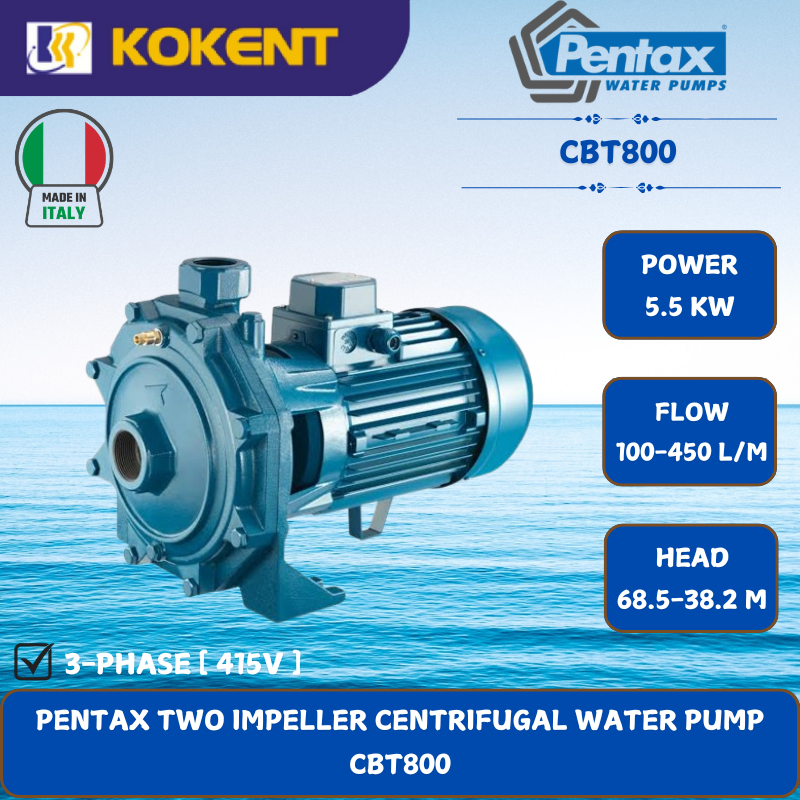

MODEL: Pentax CBT800

Pentax CBT800 is a two impeller centrifugal pumps for constructing pressurisation systems for civil and industrial plant; the two counter-posed impellers guarantee high head and flow rate.

  • WITHOUT Cable
  • Motor Bracket: Cast Iron
  • Impeller: Brass Impeller

SPECIFICATIONS

Size Discharge 2” x 1¼”
Power 5500 W / 415V
Flow Rate 100 ~ 450 L/min
Head 68.5 ~ 38.2 meters
Manometric Suction Lift Max. 6 meters
Dimensions (L x W x H) 605 x 275 x 330mm
Weight 78kg

CONSTRUCTION FEATURES

Pump body cast iron
Motor bracket cast iron
Impeller noryl® or brass (100÷900)
brass (800÷1500)
Seal ceramic-graphite-NBR
Pump shaft end stainless steel AISI 303
stainless steel AISI 416 (100)
Ambient temperature impeller in noryl®: 0 – 50 °C
brass impeller: 0 – 90 °C
Pump body gasket max 6 bar (100)
max 11 bar (160-1500)

MOTOR

2 poles induction motor 3~ 230/400V-50Hz P 4kW
3~ 400/690V-50Hz P > 4kW
1~ 230V-50Hz (with thermal protection up to MEC 80)
Insulation class F
Protection degree IPX4
IPX5 (800÷1500)
