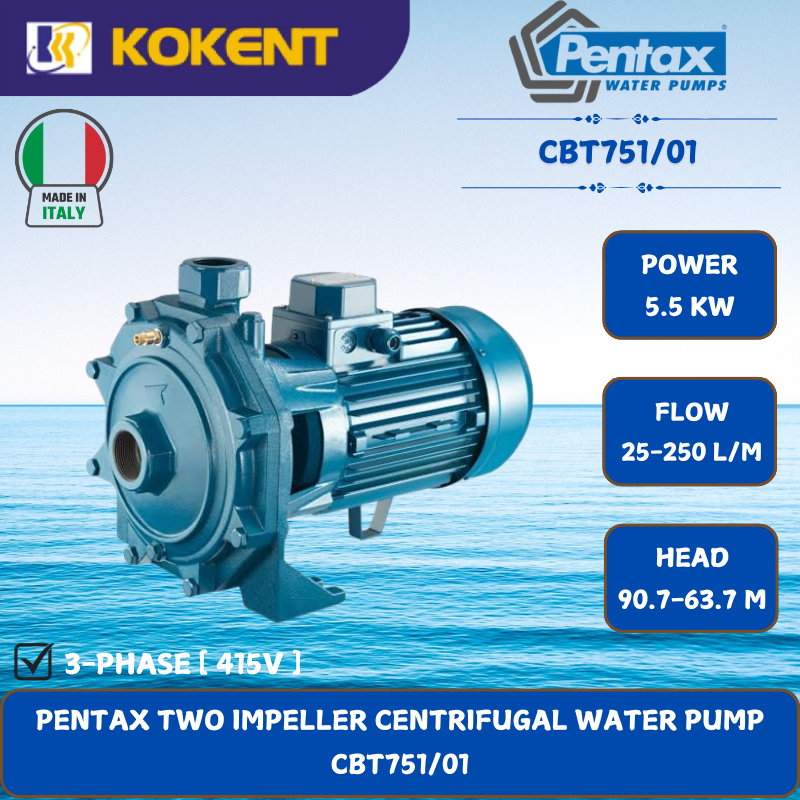

PENTAX TWO IMPELLER CENTRIFUGAL WATER PUMP [5.5KW.25-250L/MIN.90.7-63.7M/HEAD] CBT751/01
PENTAX TWO IMPELLER CENTRIFUGAL WATER PUMP [5.5KW.25-250L/MIN.90.7-63.7M/HEAD] CBT751/01

PENTAX TWO IMPELLER CENTRIFUGAL WATER PUMP [5.5KW.25-250L/MIN.90.7-63.7M/HEAD] CBT751/01

Product Code: CBT751/01
Availability: In Stock
Loading ...
017 432 8850019 209 0701
Share:

Description

MODEL: Pentax CBT751/01

Pentax CBT751/01 is a two impeller centrifugal pumps for constructing pressurisation systems for civil and industrial plant; the two counter-posed impellers guarantee high head and flow rate.

  • WITHOUT Cable
  • Motor Bracket: Cast Iron
  • Impeller: Brass Impeller

SPECIFICATIONS

Size Discharge 1½” x 1¼”
Power 5500 W / 415V
Flow Rate 25 ~ 250 L/min
Head 90.7 ~ 63.7 meters
Manometric Suction Lift Max. 6 meters
Dimensions (L x W x H) 532 x 266 x 305mm
Weight 56kg

CONSTRUCTION FEATURES

Pump body cast iron
Motor bracket cast iron
Impeller noryl® or brass (100÷900)
brass (800÷1500)
Seal ceramic-graphite-NBR
Pump shaft end stainless steel AISI 303
stainless steel AISI 416 (100)
Ambient temperature impeller in noryl®: 0 – 50 °C
brass impeller: 0 – 90 °C
Pump body gasket max 6 bar (100)
max 11 bar (160-1500)

MOTOR

2 poles induction motor 3~ 230/400V-50Hz P 4kW
3~ 400/690V-50Hz P > 4kW
1~ 230V-50Hz (with thermal protection up to MEC 80)
Insulation class F
Protection degree IPX4
IPX5 (800÷1500)
