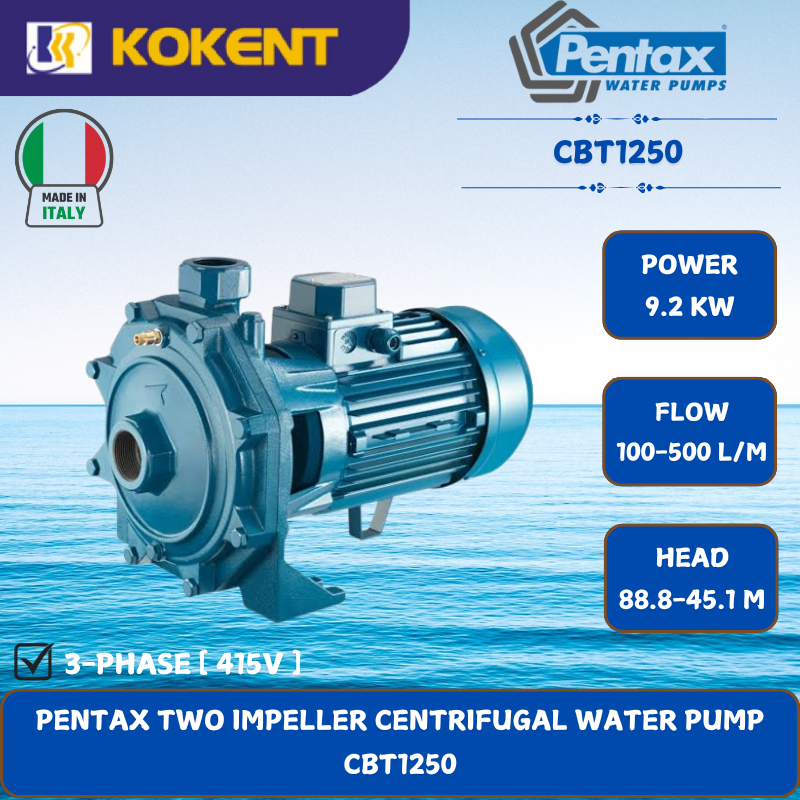

PENTAX TWO IMPELLER CENTRIFUGAL WATER PUMP [9.2KW.100-500L/MIN.88.8-45.1M/HEAD] CBT1250
Product Code: CBT1250
Availability: In Stock
Description
MODEL: Pentax CBT1250
Pentax CBT1250 is a two impeller centrifugal pumps for constructing pressurisation systems for civil and industrial plant; the two counter-posed impellers guarantee high head and flow rate.
- WITHOUT Cable
- Motor Bracket: Cast Iron
- Impeller: Brass Impeller
SPECIFICATIONS
| Size Discharge | 2”x1¼” |
| Power | 9200 W / 415V |
| Flow Rate | 100 ~ 500 L/min |
| Head | 88.8 ~ 45.1 meters |
| Manometric Suction Lift | Max. 6 meters |
| Dimensions (L x W x H) | 645 x 275 x 330mm |
| Weight | 91.5kg |
CONSTRUCTION FEATURES
| Pump body | cast iron |
|---|---|
| Motor bracket | cast iron |
| Impeller | noryl® or brass (100÷900) brass (800÷1500) |
| Seal | ceramic-graphite-NBR |
| Pump shaft end | stainless steel AISI 303 stainless steel AISI 416 (100) |
| Ambient temperature | impeller in noryl®: 0 – 50 °C brass impeller: 0 – 90 °C |
| Pump body gasket | max 6 bar (100) max 11 bar (160-1500) |
MOTOR
| 2 poles induction motor | 3~ 230/400V-50Hz P 4kW 3~ 400/690V-50Hz P > 4kW 1~ 230V-50Hz (with thermal protection up to MEC 80) |
|---|---|
| Insulation class | F |
| Protection degree | IPX4 IPX5 (800÷1500) |
