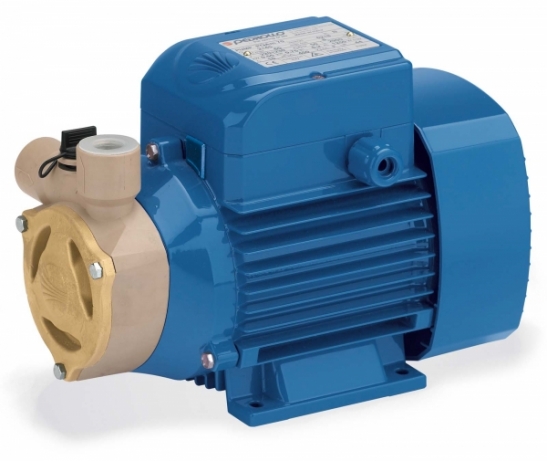

PEDROLLO Pumps with peripheral impeller (II)
PEDROLLO Pumps with peripheral impeller (II)

PEDROLLO Pumps with peripheral impeller (II)

Product Code: PQAm 60
Availability: In Stock
Loading ...
017 432 8850016 397 5838
Share:

PREFER CONTACT KENT

PERFORMANCE RANGE

  • Flow rate up to 50 l/min (3 m³/h)
  • Head up to 90 m

PATENTS - TRADE MARKS - MODELS

  • Motor bracket : patented n° IT1243605
  • Registered Community Design n° 342159-001

APPLICATION LIMITS

  • Manometric suction lift up to 8 m
  • Liquid temperature between -10 °C and +90 °C
  • Ambient temperature between -10 °C and +40 °C
  • Max. working pressure 10 bar • Continuous service S1

GUARANTEE

2 years subject to terms and conditions

INSTALLATION AND USE

Suitable for use with clean water that does not contain abrasive particles and liquods that are not chemically aggressive towards the materials from which the pump is made. The RYTON and brass pump body constructing guarantees against the formation of rust and oxidation. As a result of these characteristics these pumps are suitable for use in industrial applications such as cooling, conditioning and boiler feed. The pump should be installed in an enclosed environment, or at least sheltered from inclement weather.

OPTIONALS AVAILABLE ON REQUEST

  • Special mechanical seal
  • EN 10088-3 - 1.4401 (AISI 316) stainless steel motor shaft
  • Other voltages or 60 Hz frequency
  • IP55 class protection
MODEL
single-phase		 MODEL
three-phase		 POWER
kW		 POWER
HP		 0
0		 0.1
2		 0.3
5		 0.6
10		 0.9
15		 1.2
20		 1.5
25		 1.8
30		 1.9
32		 2.3
38		 2.7
45		 3.0
50
PQAm 60 PQA 60 0.37 0.50 40 38 35 29 23.5 18 12.5 7 5
PQAm 70 PQA 70 0.55 0.75 65 62 58 52 45.5 39.5 33 27 24 16.5 8
PQAm 72 PQA 72 0.55 0.75 65 - 62 57 52 47 42 37.5 35.5 29.5 22.5 18
PQAm 80 PQA 80 0.75 1 70 66 62 56 49.5 43 37 31 28 20.5 12
PQAm 82 PQA 82 0.75 1 70 - 66 61 56 51 46 41.5 39.5 37.5 26.5 22
PQAm 90 PQA 90 0.75 1 90 86 79 68 56.5 45.5 34 23 18.5 5



COMPONENT CONSTRUCTION CHARACTERISTICS
PUMP BODY Brass
MOTOR BRACKET Aluminium with brass insert (patented), reduces the risk of impeller seizure
IMPELLER Brass, with peripheral radial vanes
MOTOR SHAFT Stainless steel EN 10088-3 - 1.4104
ELECTRIC MOTOR
  • PQAm: single-phase 230 V - 50 Hz with thermal overload protector built-in to the winding.
  • PQA: three-phase 230/400 V - 50 Hz.
  • ➠ Pumps fi tted with the three-phase motor option off er IE2 (IEC 60034-30) class high performance
  • – Insulation: F class.
  • – Protection: IP 44.

ABSORPTION

MODEL
single-phase		 VOLTAGE
230V		 VOLTAGE
240V		 VOLTAGE
110V		 MODEL
three-phase		 VOLYAGE
230V		 VOLTAGE
400V		 VOLTAGE
240V		 VOLTAGE
415V
PQAm 60 2.5 A 2.4 A 5.2 A PQA 60 2.0 A 1.15 A 1.9 A 1.1 A
PQAm 70 6.2 A 5.5 A 10.8 A PQA 70 4.2 A 2.4 A 3.7 A 2.2 A
PQAm 72 6.2 A 5.5 A 10.8 A PQA 72 4.2 A 2.4 A 3.7 A 2.2 A
PQAm 80 6.3 A 5.5 A 10.8 A PQA 80 4.2 A 2.4 A 3.7 A 2.2 A
PQAm 82 6.3 A 5.5 A 10.8 A PQA 82 4.2 A 2.4 A 3.7 A 2.2 A
PQAm 90 5.6 A 5.1 A 11.5 A PQA 90 4.2 A 2.4 A 3.8 A 2.2 A

PALLETIZATION

MODEL
single-phase		 MODEL
three-phase		 GROUPAGE
n° pumps		 GROUPAGE
H (mm)		 GROUPAGE
kg (1-)		 GROUPAGE
kg (3-)		 CONTAINER
n° pumps		 CONTAINER
H (mm)		 CONTAINER
kg (1-)		 CONTAINER
kg (3-)
PQAm 60 PQA 60 192 1490 940 940 264 1990 1290 1290
PQAm 70 PQA 70 120 1310 1150 1030 180 1900 1710  1530
PQAm 72 PQA 72 120 1310 1160 1040 180 1900 1730 1550
PQAm 80 PQA 80 120 1310 1150 1030 180 1900 1710 1530
PQAm 82 PQA 82 120 1310 1160 1040 180 1900 1730 1550
PQAm 90 PQA 90 120 1310 1160 1040 180 1900 1730 1550
