Qing Yang GC300BN: Portable Pipe Groover, Pipe Wall Thickness: 3-7mm, Pipe Diameter: 2″-12″, Speed:

Qing Yang GC300BN: Portable Pipe Groover, Pipe Wall Thickness: 3-7mm, Pipe Diameter: 2″-12″, Speed:
Qing Yang GC300BN: Portable Pipe Groover, Pipe Wall Thickness: 3-7mm, Pipe Diameter: 2″-12″, Speed:

Qing Yang GC300BN: Portable Pipe Groover, Pipe Wall Thickness: 3-7mm, Pipe Diameter: 2″-12″, Speed:

Product Code: GC300BN
Availability: In Stock
Loading ...
Share:

Model: GC300BN

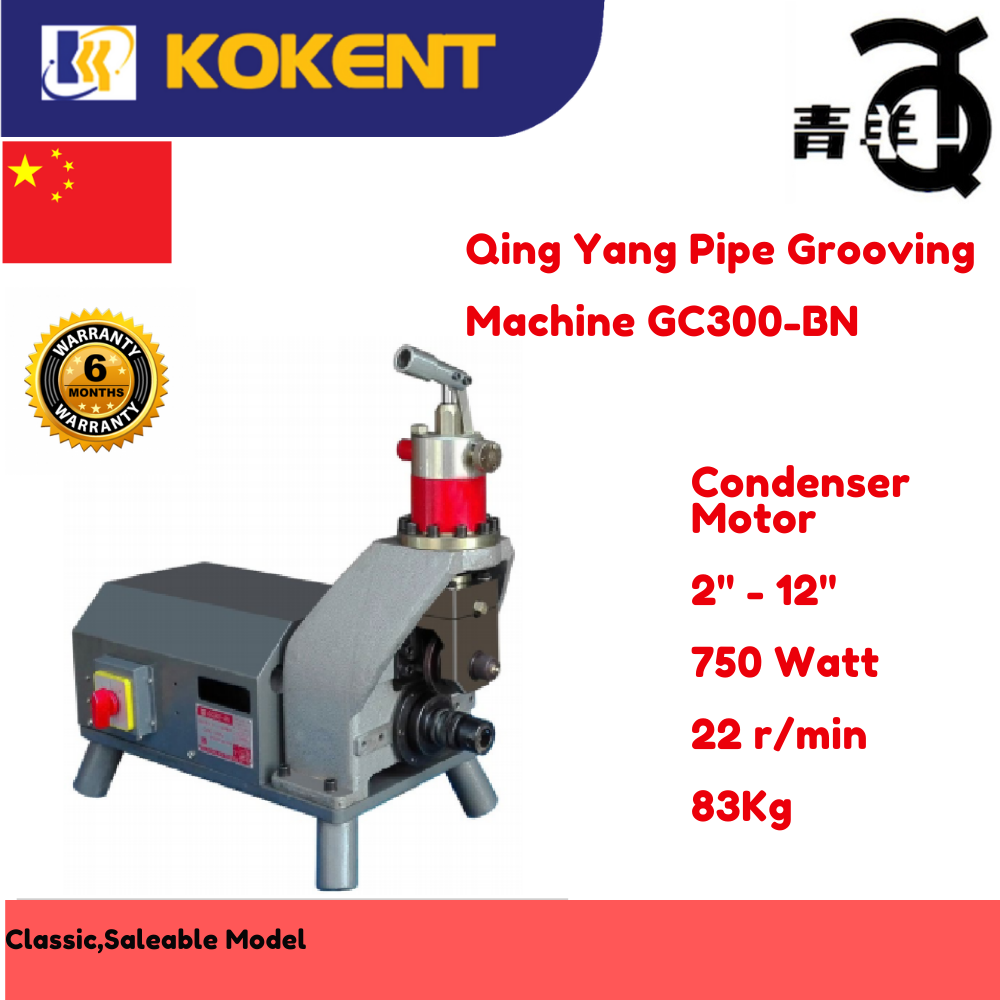

Qing Yang GC300BN is a reliable portable GI pipe grooving machine.

Applications

  • Use for rolling annular groove at the end of the steel pipe to install ring clasps for pipe connection.

Features

  • Light in weight.
  • Hydraulic drive.
  • Good performance-price ration.
  • Easy and reliable operation.
  • Upper pinch roller is adjustable relative to lower knurl roller.

Specifications

Capacity Pipe Wall Thickness 3~7mm
Capacity Pipe Diameter 50~300mm
Type of Feed Hydraulic Drive
Standard of Groove Following US groove standard
Spindle Speed 22rpm
Motor YC7142T, 220V, 50Hz, 750W, 2800rpm
Max. Working Force 6200N
Max.Pressure 32MPa
Oil Pump Displacement 1.2ml/time
Cylinder Capacity 100ml
Weight 85kg
Machine Size 680mm x 288mm x 516mm
Packing Size 735mm x 475mm x 732mm

Accessories Included

  • Roller Stand
