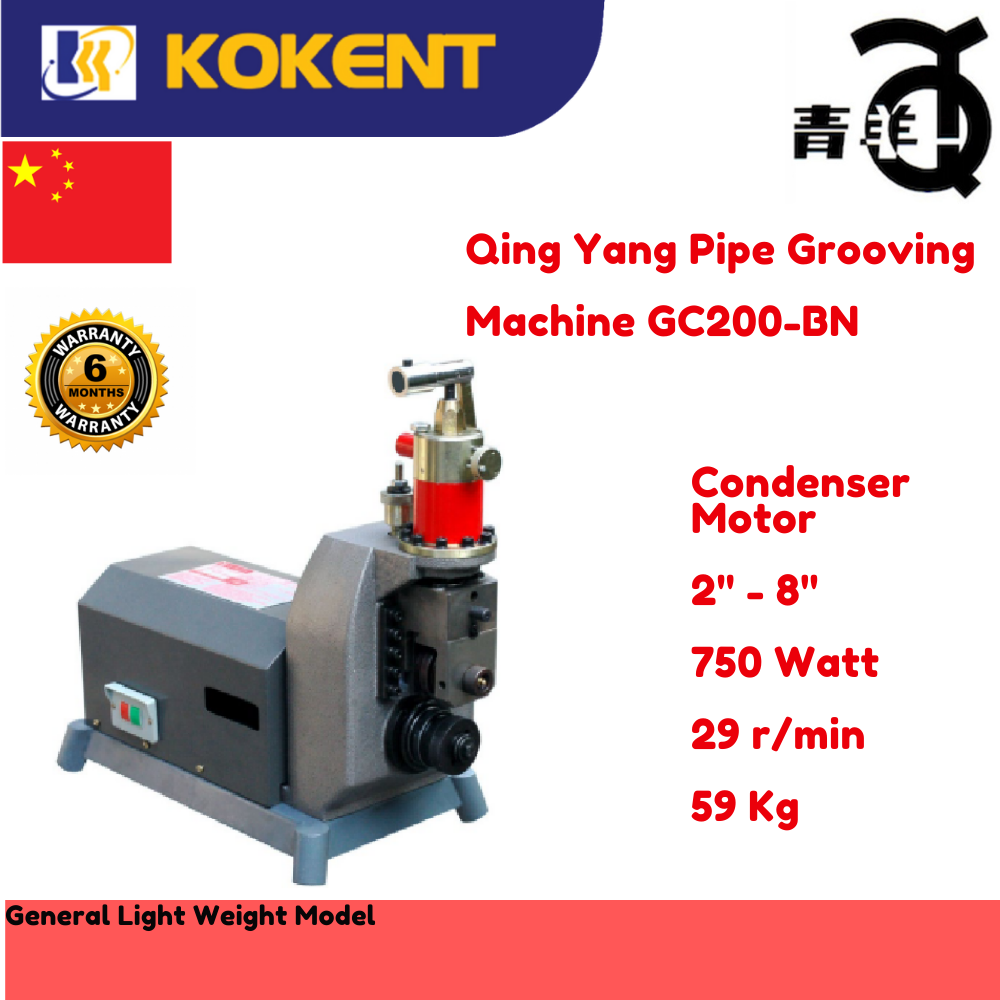

Qing Yang Pipe Grooving Machine 2"~8" 29rpm 750W 59kg GC200-BN

Qing Yang Pipe Grooving Machine 2
Qing Yang Pipe Grooving Machine 2

Qing Yang Pipe Grooving Machine 2"~8" 29rpm 750W 59kg GC200-BN

Product Code: GC200-BN
Availability: In Stock
Loading ...
Share:

Model: GC200-BN
Pipe Grooving machine fom 2" to 8".

Price inclusives 6%GST.

Features

  • Light in weight.
  • Hydraulic drive.
  • Good performance-price ration.
  • Easy and reliable operation.
  • Upper pinch roller is adjustable relative to lower lnurl roller.

Specifications

Capacity Pipe Wall Thickness 1~6mm
Capacity Pipe Diameter 50~200mm
Type of Feed Hydraulic Drive
Standard of Groove Following US groove standard
Spindle Speed 29rpm
Motor YC7142T(Short shaft), 220V, 50Hz, 750W, 2800rpm
Max. Working Force 4000N
Max.Pressure 32MPa
Oil Pump Displacement 1.1ml/time
Cylinder Capacity 110ml
Weight 59kg
Machine Size 637mm x 316mm x 600mm
Packing Size 710mm x 390mm x 670mm
