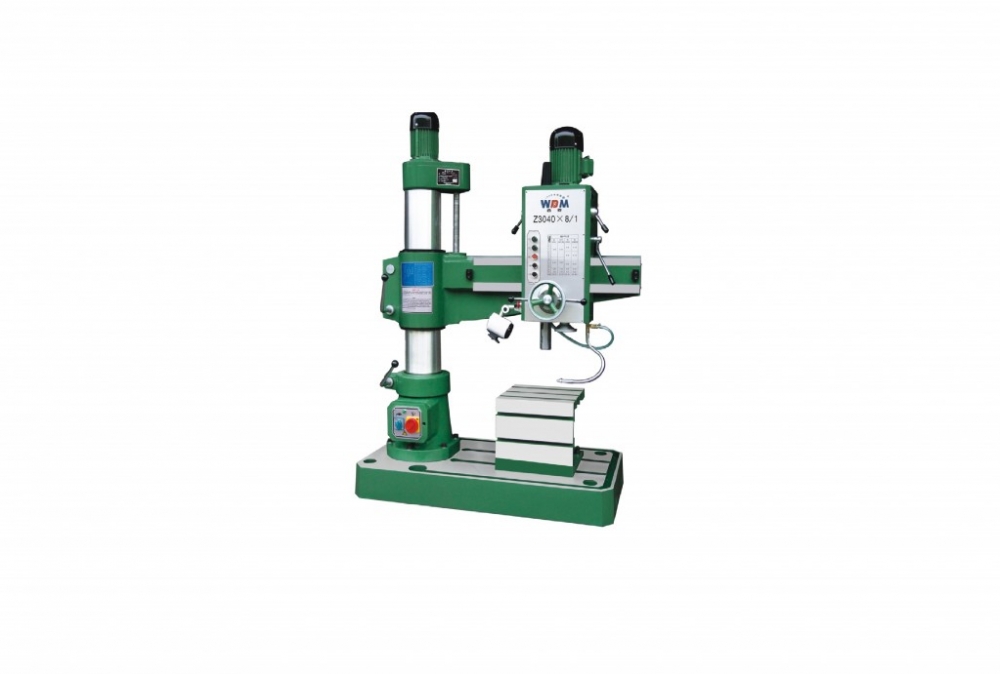

Radial Drilling (II)
Radial Drilling (II)

Radial Drilling (II)

Product Code: Z3032 x 8/1
Availability: Pre Order
Loading ...
017 432 8850019 209 0701
Share:
MODEL Z3032 x 8/1
Max.drillling capacity (mm) 32
Distance spindle axis to column generating line (mm) 320 -820
Diameter of column (mm) 200
Spindle taper MT4
Spindle travel (mm) 240
Spindle speeds range (r/min) 75 - 1220
Spindle speeds series 6
Range of spindle feeds (mm/r) 0.1 - 0.25
Mpindle spindle feeds 3
Distance spindle nose to working surface of base (mm) 120 - 860
Dimension of worktable (mm) 400x400x350
Dimension of base (mm) 1370 x 700 x 160
Overall size (mm) 1407 x 720 x 1885
Power of main motor (kW) 1.5
G.W/N.W (kg) 1425
Packing dimension (cm) 155x77x210
