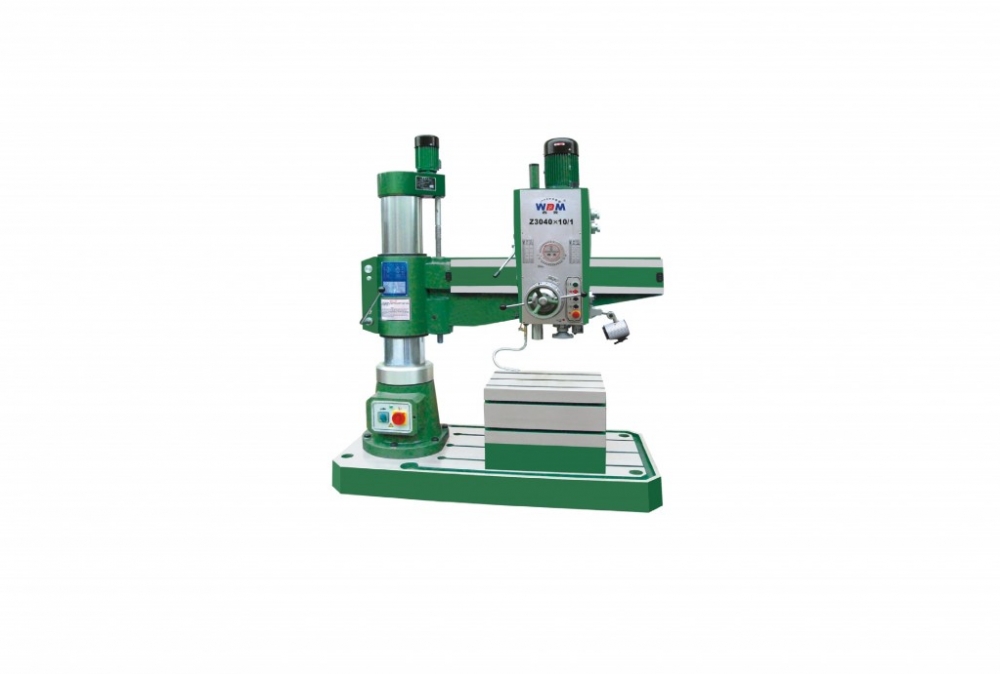

Radial Drilling (II)
Radial Drilling (II)

Radial Drilling (II)

Product Code: Z3032 x 10/1
Availability: Pre Order
Loading ...
017 432 8850019 209 0701
Share:

STANDARD ACCESSORIES

  • Box shape worktable
  • Taper sleeve
  • Tool releasing wrench
  • Drift
  • Eyelets bolts

SPECIAL ACCESSORIES

  • Quick instead chuck
  • Tapping chuck
  • Grease Gun
Model Z3032 x 10/1
Max.Drilling capacity (mm) 32
Distance spindle axis to column generating line (mm) 300 - 1000
Diameter of column (mm) 240
Spindle taper MT4
Spindle travel (mm) 280
Spindle speeds range (r/min) 32 - 2500
Spindle speeds series 16
Range of spindle feeds (mm/r) 0.10 - 1.25
Mpindle spindle feeds 8
Distance spindle nose to working surface of base (mm) 220 - 1000
Dimension of worktable (mm) 600 x 450 x 450
Dimension of base (mm) 1710 x 800 x 160
Overall size (mm) 1760 x 800 x 2050
Power of main motor (kW) 2.2
G.W/N.W (kg) 2000
Packing dimension (cm) 187 x 97 x 220
