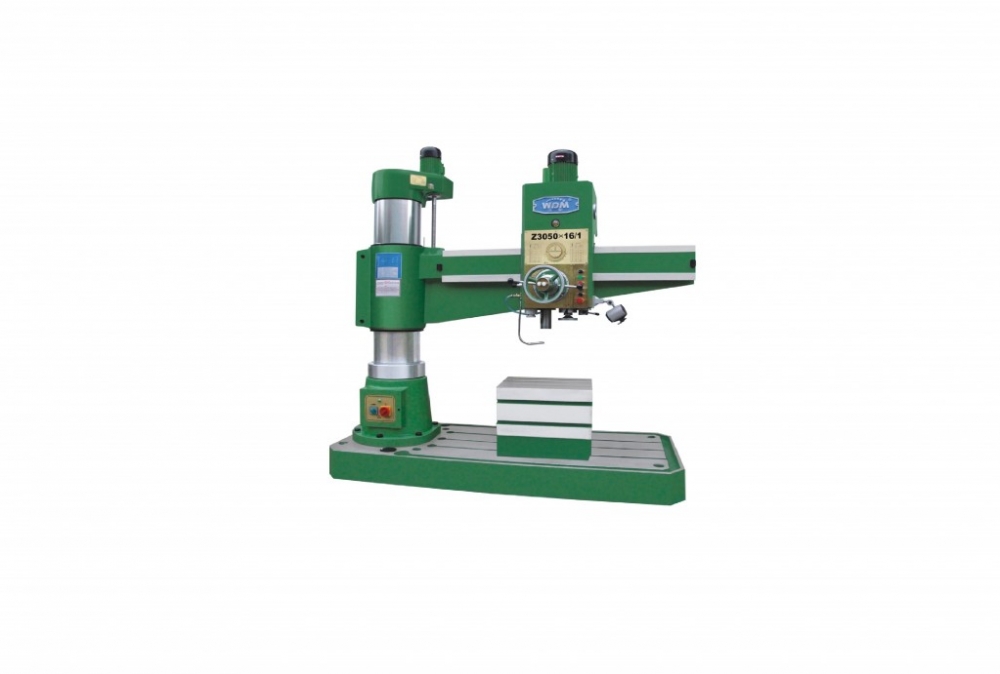

Radial Drilling Machine (II)
Product Code: Z3050 x 16/1
Availability: Pre Order
| MODEL | Z3050 x 16/1 |
| Max.drilling capacity (mm) | 50 |
| Distance spindle axis to column generating line (mm) | 350 - 1600 |
| Diameter of column (mm) | 350 |
| Spindle taper | MT5 |
| Spindle travel (mm) | 315 |
| Spindle speeds range (r/min) | 25 - 2000 |
| Spindle speeds series | 16 |
| Range of spindle feeds (mm/r) | 0.04~3.2 |
| Spindle feeds | 16 |
| distance spindle nose to working surface of base (mm) | 320~1220 |
| Dimension of worktable (mm) | 630 x 500 x 500 |
| Dimension of base (mm) | 2400 x 1000 x 200 |
| Overall size (mm) | 2500 x 1060 x 2650 |
| Power of main motor (kW) | 4 |
| G.W/N.W (kg) | 3900/3500 |
| Packing dimension (cm) | 260 x 112 x 260 |
